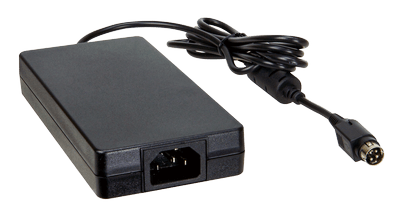

FSP150-ABAN3

150 W AC/DC Adapter

150 W AC/DC Adapter

Hardware Spec.

Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 80°C
Input
Voltage 90-264 VAC
Frequency 47-63 Hz
Input Current 7.89A
Inrush Current 7.89A
Output
Voltage 19V
General
Watt 150W
Efficiency 87%
Dimensions 75.6 x 151.3 x 25.4 (mm)

Ordering Information

63040-010150-700-RS Adapter Power;FSP;FSP150-ABAN3;9NA1504811;Active PFC;Vin:90~264VAC;150W;Dim:75.6*151.3*25.4mm;Plug=6.5mm;Cable=1500mm;Erp(NO LOAD 0.15W);Vout:19VDC;Din 4Pin/lock;CCL;RoHS
