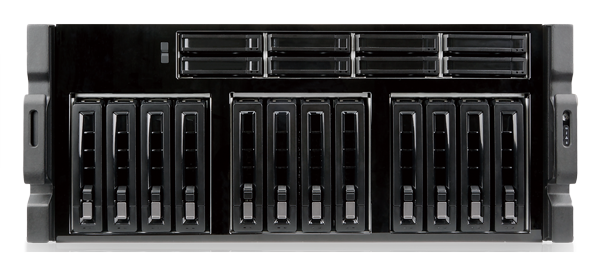

GRAND-C422-20D-H

The GRAND-C422-20D is an AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability, Support RAID controller card

End of Life

End of Life Notice

* Effective Date: 2021/10/07

» Intel® Xeon® W family processor supported
» Up to 7 x PCIe Slot, up to 4 dual width GPU cards
» Water cooling system on CPU
» Support SAS SSD
» Support one M.2 SSD M-key slot (NVMe PCIe 3.0 x4)
» Support 10GbE network
» Support RAID controller card
» IPMI remote management

Hardware Spec.

System
CPU Intel® Xeon® W Family Processors
Chipset Intel® C422
Memory Max. Memory expandable up to: 256 GB (64 GB x 4)
Cooling method / System Fan 2 x Smart Fan (12cm 12V DC)
Physical Characteristics
Rack Height 4U
Storage
Storage 8 x 2.5” SSD/HDD Bay
12 x 3.5” HDD Bay
1 x M.2(NGFF)
20 x SATA(Support SAS/SATA drives)
I/O Interface
Display Output 1 x VGA
Ethernet 2 x LAN(1 x 10Gbase-T, 1 x 1Gbase-T)
I/O Interface 1 x External RS-232
2 x External USB 2.0
4 x External USB 3.0
Expansion 2 x PCIe x 16(2 x PCIex16 for GRAND-C422-20D-H1)
3 x PCIe x 4(3 x PCIex4 for GRAND-C422-20D-H1, 2 x PCIex4 for GRAND-C422-20D-H2)
5 x PCIe x 8(1 x PCIex8 for GRAND-C422-20D-H1, 5 x PCIex8 for GRAND-C422-20D-H2)

Ordering Information

GRAND-C422-20D-H2A1-R10 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 7 x PCIe expansion slot, and 1200W redundant PSU, RoHS
GRAND-C422-20D-H2-R10 Barebone, 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon W series with C422 chipset, 7 x PCIe expansion slot, and 1200W redundant PSU, RoHS
GRAND-C422-20D-H1A1-R10 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 6 x PCIe expansion slot, and 1200W redundant PSU, RoHS
GRAND-C422-20D-H1-R10 Barebone, 20-bay(12 x 3.5", 8 x 2.5") 4U Rackmount, support hardware RAID, Intel® Xeon W series with C422 chipset, 6 x PCIe expansion slot, and 1200W redundant PSU, RoHS

Package Contents

Package Content
  • Ethernet cable x 2

  • Power cord x 2

  • Flat head screw (for 3.5” HDD)

  • Flat head screw (for 2.5” HDD)
