End of Life Notice
* Effective Date: 2021/06/28

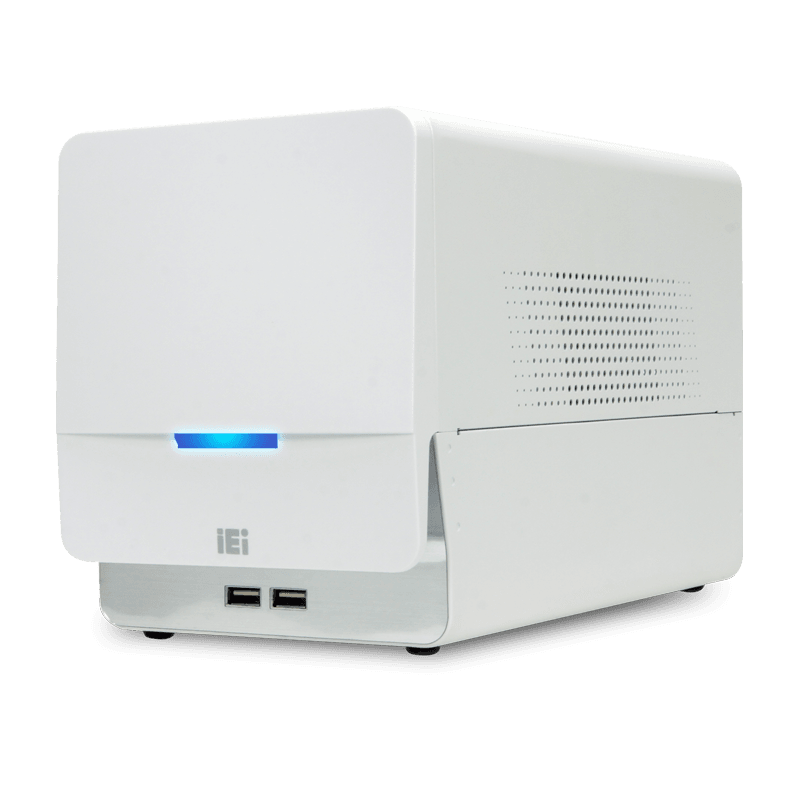

» Compact small edge device with great computing & graphic performance
» 6th/7th Gen Intel® Xeon & Core™ processor platform with Intel® C236 chipset
» Dual SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB
» PCIe [x16] slot supports for Nvidia GPU, IEI Mustang Acceleration Card
» PCIe [x4] slot supports for capture card or other application
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
*CPU: Intel® Xeon E3-1268LV5,35W TDP *Chipset: Intel® C236 for Xeon *Memory: Two 260-pin 1600/2133MHz Dual-Channel DDR4 SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB *Power: DC Jack : 19V DC(Input) 100V ~ 240V AC input ,19V DC output ,180W |
| I/O Interface | |
| I/O Ports |
2 x USB 3.2 Gen 1, 2 x USB 2.0 1 x RS-232/422/485 LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support LAN2: Intel® I210 PCIe controller 1 x HDMI™ 1.3a (up to 1920x1200) |
| Expansion Slots | |
| Expansion Slots |
1 x PCIe Gen3 [x16] slot 1 x PCIe Gen3 [x4] slot 1 x Half-size Mini- Card |
| System | |
| Cooling method / System Fan | Smart Fan |
| Indicator&Buttons | |
| Buttons |
1 x Power Button 1x Reset switch 1x AT/ATX switch |
| Color | |
| Color | White |
| Dimensions | |
| Dimensions | 140 x 171 x 276.6 mm |
| Weight | |
| Weight | 2.8 Kg |
| Environment | |
| Operating Temperature | 0 ~ 35° C |
| Humidity | 10% ~ 95%, non-condensing |
Ordering Information
| HTB-200-C236-i5/16G/2A-R10 | Embedded system with Intel® Core i5-7500T 2.7GHz, (Quad Core, TDP 35W), 2x8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, R10 |
|---|---|
| HTB-200-C236-E3/32G/2A-R10 | Embedded system with Intel® Xeon®E3-1268LV5 2.4GHz, (Quad Core, TDP 35W), 2x16GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, R10 |
Package Contents
| Package Content |
|
|---|
