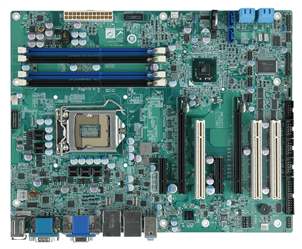

ATX motherboard supports 32nm LGA1155 Intel® Xeon® E3/Core™ i3/Celeron® CPU per Intel® C206

End of Life

End of Life Notice

* Effective Date: 2017/09/19

» LGA1155 Intel® Xeon® E3 and Intel® Core™ i3 processor supported
» Dual-channel 1333 MHz DDR3 supports up to 32 GB memory
» Intel® PCIe GbE with Intel® AMT 7.0 support
» Providng high-speed graphics interface by two PCIe x8/PCIe x4 add-on cards
» USB 3.0 and SATA 6Gb/s supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® C206
Memory Max. Four 240-pin 1333/1066MHz
dual-channel DDR3 SDRAM
ECC Registered and non-ECC
unbuffered DIMM
(system max. 32GB)
Storage 2 x SATA 6Gb/s
4 x SATA 3Gb/s
CPU Socket LGA1155
I/O Interface Ethernet
Digital I/O 8-bit digital I/O (4-bit input/4-bit output)
Audio Realtek ALC892 HD Audio
I/O Interface 5 x RS-232
1 x RS-422/485
2 x USB 3.0
10 x USB 2.0
1 x LPT
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x PS/2 KB & MS
1 x TPM connector (2x10 pin)
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Option iRIS
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x RS-422/485
1 x I²C
4 x Internal RS-232
1 x LPT
2 x USB 3.0
2 x USB 2.0
8 x Internal USB 2.0
1 x Internal RS-422/485
1 x RS-232

Ordering Information

IMBA-C2060-R20 ATX Motherboard supports 32nm LGA1155 Intel Xeon E3 and Intel Core i3 CPU per Intel C206,DDR3,VGA/DVI/HDMI™,Dual Intel PCIe GbE,USB 3.0,SATA 6Gb/s,Audio,RoHS

Download Specs.
