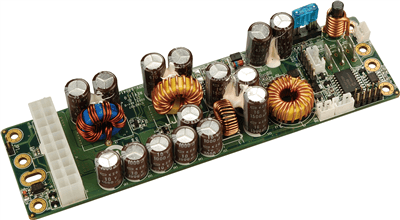

IDDV-6304140A

140 W DC/DC Smart ATX Converter Module for Vehicle

End of Life

End of Life Notice

* Effective Date: 2017/10/16

» Wide input range: 6-30 VDC
» Smart system on/off control
» Six selectable power on/off timing modes
» Load down protection
» Over voltage protection
» Short circuit protection
» Over current protection
» Battery voltage monitor
» Amplifier on-delay control
» RoHS compliant
» Compact size
» Infrared remote off (optional)

Hardware Spec.

General
Dimensions 45 x 160
Efficiency 90%
Operating temperature -20ºC ~ 85ºC
Storage temperature -25ºC ~ 90ºC
Watt 140W
Input
Voltage 6 VDC to 30 VDC
Output
Voltage 5 V@10 A, 3.3 V@10 A, 12 V@4 A, -12 V@0.15 A
& 5VSB@1.5 A

Ordering Information

IDDV-6304140A-R10 140W DC/DC 6-30V DC input,Vehicle Converter Module,RoHS
