UPC-F12C-ULT3

Vertical Market Panel PC

End of Life

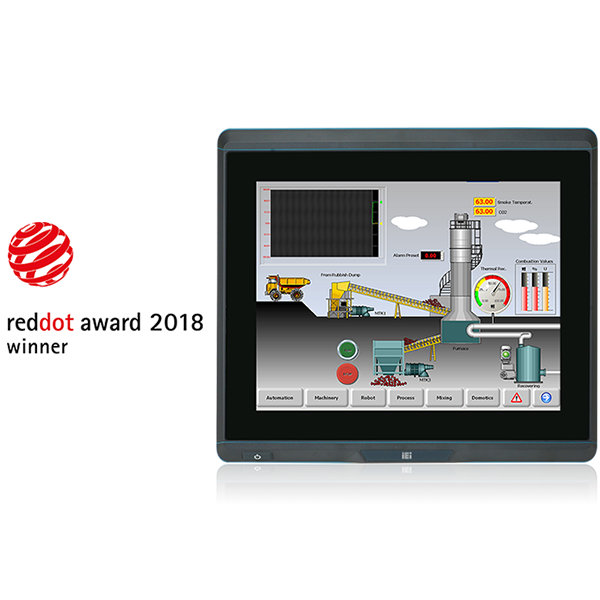

UPC-waterproof-panel-PC-with-reddot
UPC-waterproof-panel-PC-with-reddot
UPC-waterproof-panel-PC-with-reddot
UPC-waterproof-panel-PC-with-reddot
UPC-waterproof-panel-PC-with-reddot
  • UPC-waterproof-panel-PC-with-reddot
  • UPC-waterproof-panel-PC-with-reddot
  • UPC-waterproof-panel-PC-with-reddot
  • UPC-waterproof-panel-PC-with-reddot
  • UPC-waterproof-panel-PC-with-reddot

End of Life Notice

* Effective Date: 2021/07/13

» 12.1” fanless panel PC with Intel® Skylake ULT processor
» IP66 6-side protection with M12 connector I/O cover
» IP65 6-side protection with standard cable I/O cover
» Built-in wireless 802.11 a/b/g/n/ac and Bluetooth V4.0
» Operating temperature : -20°C ~ 60°C
» Flat glass PCAP touch with 6H hardness, resistive touch window

Hardware Spec.

System
Storage 1 x 2.5” HDD bay
1 x M.2 (B key 2242 with USB 2.0 and SATA signal)
On-board Memory 1 x 260-pin 2133/1867 MHz single-channel 4GB DDR4 SO-DIMMs
Expansion Slots
Expansion Slots 1 x M.2 (B key 2242 with USB 2.0 and SATA signal)
Environment
Humidity 10% ~ 95% (non-condensing)
Display
Max Resolution 1024(W) x 768(H)
Power
Power consumption 12 V @ 5 A; 36 V @ 1.6 A
Display
LCD Size 12.1”
Backlight MTBF(hrs) 16.2M
Environment
Operating Temperature -20ºC ~ 60ºC
Storage Temperature -20ºC ~ 70ºC
Physical Characteristics
Dimensions (LxWxH) (mm) 279x316x67
Display
Brightness(cd/m2) 600
System
CPU 6th generation Intel® Core™ i5 and Celeron® ULT processor
Display
Contrast Ratio 700:1
Communication
Wi-Fi 802.11 a/b/g/n/ac
Physical Characteristics
Construction Aluminum die-casting
Color Black
Communication
Bluetooth Bluetooth v4.0
Environment
Safety & EMC CE & FCC
System
Cooling method / System Fan Fanless
I/O Interface
Ethernet LAN1: PCIe GbE by Intel® I211 controller
LAN2: PCIe GbE by Intel® I211 controller
I/O Ports M12 Type:
1 x 8-pin M12 connector for RS-232
1 x 8-pin M12 connector for RS-232/422/485
1 x 8-pin M12 connector for GbE LAN
2 x 8-pin M12 connector for two USB 2.0
1 x 5-pin M12 connector for DC jack (12V~36V DC)

Standard Type:
1 x DC jack (12V-36V DC)
1 x DC-in terminal block
(12V-36V DC)
1 x HDMI™
1 x VGA
1 x RS-232 (COM1 RJ-45)
1 x RS-232/422/485 (COM2 RJ-45)
2 x LAN
2 x USB 2.0
2 x USB 3.0
Power
Input Power 1: 12V ~ 36V (terminal block)
Power 2: 12V ~ 36V (DC jack)
System
Chipset SoC
Physical Characteristics
Net Weight standard: 5.02kg
M12: 4.95kg
Environment
IP Level standard: 5-side IP66 (IP65 I/O panel)
M12: 6-side IP66
Physical Characteristics
Mounting VESA 100x100

Ordering Information

UPC-F12CM-ULT3-i5/R/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, M12 I/O, R10
UPC-F12CM-ULT3-i5/PC/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, M12 I/O, R10
UPC-F12CM-ULT3-C/R/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, M12 I/O, R10
UPC-F12CM-ULT3-C/PC/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, M12 I/O, R10
UPC-F12C-ULT3-i5/R/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, R10
UPC-F12C-ULT3-i5/PC/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, R10
UPC-F12C-ULT3-C/R/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, R10
UPC-F12C-ULT3-C/PC/4G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, R10

Package Contents

Package Content
  • 1 x Touch Pen (Resistive type only)

  • 2 x Ferrite core

  • 2 x D-Sub to RJ45 cable (for standard only)

  • Waterproof plugs: Φ3x2 Φ4x1, Φ5x1, cover x 6 (for standard only)

  • 1 x M12 to USB cable (for M12 only)


Download Specs.
