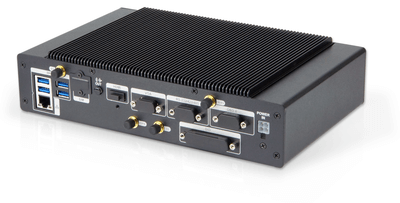

IVS-110-AL

Vehicle Fleet Management System

End of Life

in-vehicle-computer
in-vehicle-computer
  • in-vehicle-computer
  • in-vehicle-computer

End of Life Notice

* Effective Date: 2023/09/21

» Intel® Apollo Lake processor
» Dual SIM slot
» Optional 3G/Wi-Fi
» 16 x DI/DO
» 1 x HDMI™ (lockable), 1 x VGA
» Built-in GPS function
» E-Mark certification
» Built-in OBD-II/J1939
» IP4X protection

Hardware Spec.

Form factor
SBC Form Factor *CPU: Intel® Atom™ x7-E3950 Processor (quad-core 2.0GHz, 12W TDP)
*Chipset: SoC
*System Memory: 1 x 204-pin DDR3L SO-DIMM. 4GB pre-installed
*Communication
WLAN: PCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional)
Bluetooth: BT 4.0/3.0+HS (combo with WLAN optional module)
WWAN: PCIe Mini WCDMA/HSDPA/HSUPA (optional)
GPS: On board GPS
*Safety/EMC: CE/FCC/E-Mark/IP rating : IP 4X compliant
*Supported OS: Microsoft® Windows 10 IoT Enterprise
I/O Interface
I/O Ports 4 x USB 3.0
1 x RJ-45 PCIe GbE by Intel® I211
1 x RS-232/422/485 (BIOS configuration)
1 x 16-bit digital I/O (8-bit input / 8-bit output)
1 x DB9 OBD-II/J1939
2 x Display -
>> 1 x VGA (Up to 1920 x 1200 @ 60 Hz)
>> 1 x HDMI™ (Up to 3840 x 2160 @ 30 Hz)
1 x Audio line out
2 x on board SIM card slot
Expansion Slots
Expansion Slots 1 x Full/Half-size PCIe Mini slot (reserved for WWAN)
1 x Full/Half-size PCIe Mini slot (reserved for mSATA or E-window)
1 x Half-size PCIe Mini slot (reserved for WLAN)
System
Cooling method / System Fan Fanless
Drive Bays *Hard Drive: 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
*mSATA / eMMC:
1 x mSATA (PCIe Mini Slot)
1 x eMMC 5.0 (reserved)
Physical Characteristics
Construction Extruded aluminum alloy
Mounting Wall mount / VESA 100
Color
Color Black
Dimensions
Dimensions 261 x 170 x 60 (WxHxD) (mm)
Weight
Weight 2.4 kg / 3.8 kg (Net/Gross)
Environment
Operating Temperature Operating: -30°C ~ +70°C with air flow
Storage: -40°C ~ 80°C
Humidity 10% ~ 95%, non-condensing

Ordering Information

IVS-110-AL-E3/4G-R10 Fanless embedded system with Intel® Atom™ x7-E3950 (12W) Processor with 4GB DDR3L pre-installed memory, on board GPS, HDMI™, VGA, one GbE LAN, one 2.5" SATA HDD bay, two SIM slots, RoHs

Package Contents

Package Content
  • 1 x Screw pack

  • 1 x SATA Cable

  • 2 x Wall Mount Kit
