GRAND-AL

인텔® 셀레론® J3455 쿼드코어 1.5GHz CPU (AES-NI Encryption 적용)

End of Life

End of Life Notice

* Effective Date: 2020/06/18

» Intel® Celeron® J3455 quad-core 1.5GHz CPU with AES-NI Encryption
» 2 x SODIMM Slots, Install up to 8GB memory with 2 x 4GB DIMMs
» 1 x PCIe x2 slot can support 10GbE network card
» Storage expandable via USB3.0, up to 200TB

Hardware Spec.

Form Factor
Form Factor 2U 1U, Rackmount
System
CPU Intel® Celeron® J3455 4-core 1.5GHz (burst up to 2.3GHz)
Memory Slot: SODIMM x 2
Memory Max. 8GB
Cooling method / System Fan 12B : DC 2 x 70mm, 12V
08B : DC 2 x 70mm, 12V
04A : DC 2 x 40mm, 12V
Physical Characteristics

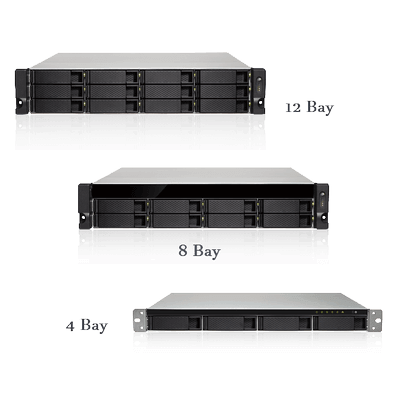

Rack Height 2U 12bay, 8bay
1U 4bay
Dimensions (LxWxH) (mm) 12B : 89(H) x 482(W) x 534(D) mm
08B : 89(H) x 482(W) x 534(D) mm
04A : 44(H) x 439(W) x 499(D) mm
Net Weight 12B : 16.14kg
08B : 11.02kg
04A : 7.63kg
Storage
Storage 3.5” HDD Bay(SATA 6Gb/s, 3Gb/s HDD or SSD; Hot-swappable
12B: 12 Bay
08B: 8 Bay
04A: 4 Bay)
1 x eMMC
I/O Interface
Display Output 1 x HDMI™(1.4b)
Ethernet 4 x LAN(Gbe)
I/O Interface 4 x External USB 3.0(Rear)
Expansion 1 x PCIe x 4
Power
Power Consumption 12B : In operation: 83.52W
08B : In operation: 82.31W
04A : In operation: 39.86W
Power Supply 12B : 350W, 100-240V, 250W (x2), 100-240V (redundant)
08B : 250W, 100-240V, 250W (x2), 100-240V (redundant)
04A : 250W, 100-240V, 250W (x2), 100-240V (redundant)
Environment
Operating Temperature 0~40˚C
Humidity 5 to 95% non-condensing, wet bulb:27˚C.

Ordering Information

GRAND-AL-04A-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W single PSU, RoHS
GRAND-AL-04A-RP-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W redundant PSU, RoHS
GRAND-AL-08B-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W single PSU, RoHS
GRAND-AL-08B-RP-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W redundant PSU, RoHS
GRAND-AL-12B-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 350W single PSU, RoHS
GRAND-AL-12B-RP-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W redundant PSU, RoHS

Package Contents

Package Content
  • Ethernet Cable x 2

  • Power cord x 2

  • Flat head screw (for 2.5" HDD)

  • Flat head screw (for 3.5" HDD)
