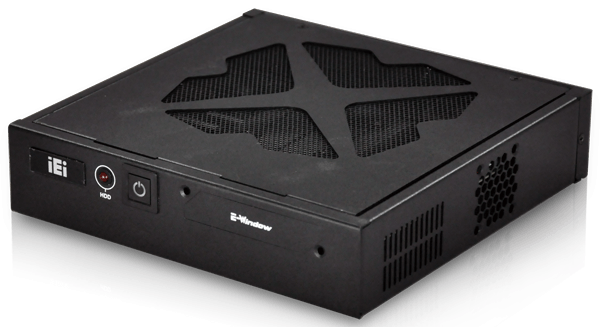

EBC-3300

Embedded Chassis for IEI thin Mini-ITX SBC

End of Life

End of Life Notice

* Effective Date: 2023/10/20

» Designs for thin type Mini-ITX SBC with single voltage input
» Total height 42mm for space critical application
» One 2.5” hard drive capacity
» Flexible E-Window tool kit support

Hardware Spec.

Form factor
SBC Form Factor Refer to SBC
I/O Interface
I/O Ports 2 x USB3.0
2 x LAN
Refer to SBC
Expansion Slots
Expansion Slots 2 slot
System
Drive Bays 1 x 3.5" (front accessible/HDD)
Indicator&Buttons
Buttons Power switch
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color
Color Black
Dimensions
Dimensions 190 x 190 x 43
Weight
Weight 1 kg/ 2kg
Environment
Operating Temperature -10°C ~ 50°C
Humidity 10% ~ 95%, non-condensing

Ordering Information

EBC-3300-ULT3-R10 Embedded chassis for tKINO-ULT3 with one 2.5" SATA hard drive bay, IO bracket, one LED cable, one power switch cable and RoHS
EBC-3300-BW-R10 Embedded chassis for tKINO-BW with one 2.5" SATA hard drive bay, IO bracket, one LED cable, one power switch cable and RoHS
EBC-3300-AL-R10 Embedded chassis for tKINO-AL with one 2.5" SATA hard drive bay, IO bracket, one LED cable, one power switch cable and RoHS

Package Contents

Package Content
  • 1 x QIG

  • 1 x Wall mount bracket kit

  • 1 x Screw set
