End of Life Notice
* Effective Date: 2021/12/28

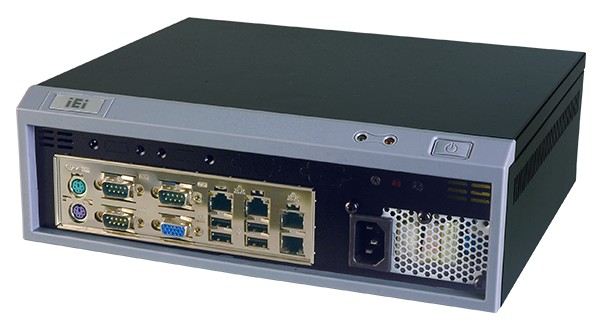

» Designed for high performance applications, bundled with 270W high efficiency ATX power supply
» Front accessible I/O design
» One 3.5” hard drive capacity
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
Refer to KINO Series SBC Size: Mini-ITX (170mm x 170mm) |
| System | |
| Cooling method / System Fan | 60 x 60 x 25 |
| Drive Bays | 1 x 3.5” SATA HDD space |
| Physical Characteristics | |
| Construction |
Heavy duty metal with plastic front panel Desktop, wall mount |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 280 x 230 x 88 |
| Weight | |
| Weight | 2.5 kg/3.9 kg |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
Ordering Information
| EBC-3000-R11/ACE-A627A | Mini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A627A-RS 270W ATX power supply,black,ROHS |
|---|---|
| EBC-3000-R11/ACE-A618A | Mini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A618A-RS 180W ATX power supply,black,ROHS |
Package Contents
| Package Content |
|
|---|
