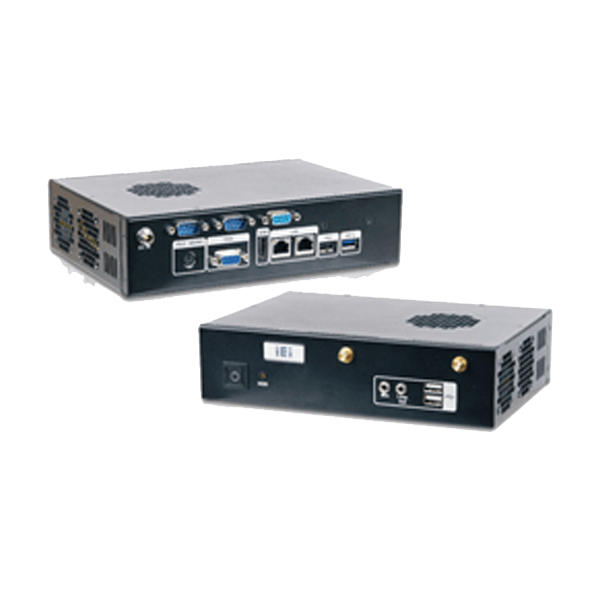

EBC-2200

Embedded Chassis for EPIC SBC

End of Life

End of Life Notice

* Effective Date: 2021/09/01

» Designed for EPIC SBC with single voltage input
» One 2.5” hard drive capacity
» Support one PCIe Mini expansion slot
» Complete I/O interface, including dual GbE, dual display port

Hardware Spec.

Form factor
SBC Form Factor Refer to SBC
SBC Size: EPIC SBC (165 mm x 115 mm)
I/O Interface
I/O Ports BT:
1 x PS/2, 1 x USB3.0, 3 x USB2.0, 2 x LAN, 2 x RS-232, 1 x RS-232/422/485, 1 x HDMI™, 1 x VGA, 1 x Audio Line-out, 1 x Mic-in, 1 x 802.11b/g/n (optional)
QM87:
2 x USB3.0, 4 x USB2.0, 2 x LAN, 1 x RS-232, 1 x RS-232/422/485, 1 x Digital I/O, 2 x HDMI™, 1 x VGA, 1 x Audio Line-out, 1 x Mic-in, 1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card slot
System
Cooling method / System Fan 40 x 40 x 10 (optional)
Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
Physical Characteristics
Construction Aluminum alloy with heavy duty metal
Wall mount, VESA 75
Color
Color Black
Dimensions
Dimensions 215 x 150 x 55
Weight
Weight 1.1 kg/2 kg
Environment
Operating Temperature -20°C ~60°C

Ordering Information

EBC-2200-QM87-R10 Embedded chassis for NANO-QM87 Series MB, with 1 x 2.5" SATA hard drive bay, IO bracket, 1 x LED Cable, 1 x Power Switch Cable, 1 x USB Cable, RoHS, R10
EBC-2200-BT-R10 Embedded chassis for NANO-BT Series MB, with 1 x 2.5" SATA hard drive bay, IO bracket, 1 x LED Cable, 1 x Power Switch Cable, 1 x USB Cable, RoHS, R10

Package Contents

Package Content
  • 1 x QIG

  • 2 x Wall mount bracket

  • 1 x Screw set
