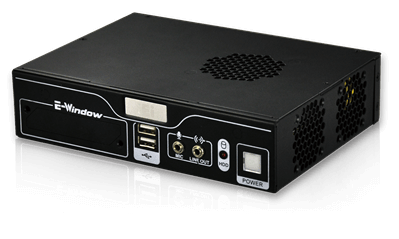

Embedded Chassis for 3.5” SBC

End of Life

End of Life Notice

* Effective Date: 2019/12/30

» Designed for WAFER-BT-E38001W2 SBC with single voltage input
» One 2.5” hard drive capacity and two PCIe Mini expansion slots
» On-board memory and on-board SSD for choice
» Flexible E-Window tool kit support
» -40°C ~ 75°C wide temperature support

Hardware Spec.

Form factor
SBC Form Factor Intel® Atom™ E3800 series on-board SoC
I/O Interface
I/O Ports 1 x USB 3.0
3 x USB 2.0
2 x RJ-45 (Intel® I210-IT PCIe controller)
2 x RS-232 (RS-232 pin header is optional)
1 x RS-422/485 (pin header, optional)
1 x VGA (up to 2560x1600@60Hz)
1 x Audio Line-out
1 x Audio Mic-in
802.1b/g/n 2T2R (optional)
Expansion Slots
Expansion Slots 2 x Full-size PCIe Mini slot
1 x E-Window
Cooling method / System Fan Refer to MB
Drive Bays 1 x 2.5’’ SATA 6Gb/s HDD/SSD drive bay
Indicators Power, HDD
Physical Characteristics
Construction Aluminum alloy with heavy duty metal
Desktop, wall mount
Color Black
Dimensions 190 x 140 x 46
Weight 1.2 kg/2.2 kg
Operating Temperature E3845 (10W):
-40°C ~ 50°C without fan module/
-40°C ~ 75°C with fan module
E3825 (6W):
-40°C ~ 65°C without fan module

Ordering Information

EBC-1100-BTW2-R10 Embedded chassis for WAFER-BT-E38001W2 Series MB, with one 2.5" SATA hard drive bay, IO bracket, one LED Cable, one Power Switch Cable, one USB Cable, one Audio Cable, RoHS, R10

Package Contents

Package Content
  • 1 x QIG

  • 1 x Wall mount bracket kit

  • 1 x Screw set

Download Specs.
