AFL3-W15C-ULT3

Intel Core™ i7/i5/i3 and Celeron® on-board Processor

End of Life

End of Life Notice

* Effective Date: 2021/09/07

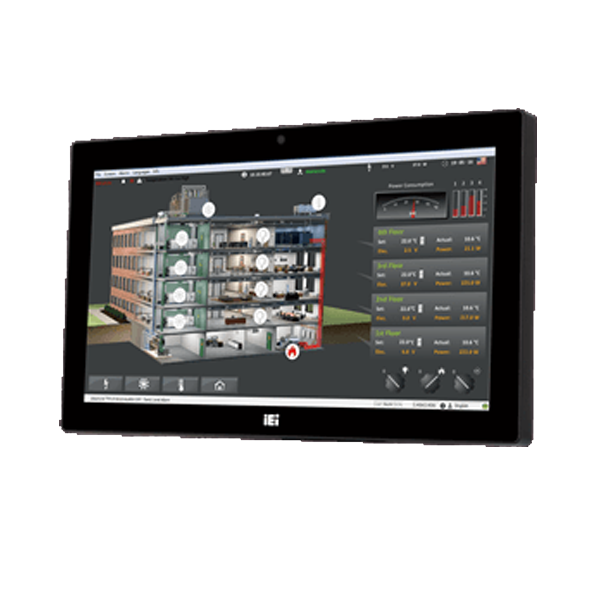

» W15” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC power input
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU 6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage 1 x 2.5” SATA 3Gb/s HDD bay
1 x M.2 M key PCIe storage (2280 or 22110)
1 x mSATA slot
Communication
Bluetooth Bluetooth v4.0
Wireless IEEE 802.11a/b/g/n/ac
I/O Interface
Ethernet 2 x Intel® I211 PCIe GbE controller
I/O Ports and Switches 1 x RS-232 by DB-9 (RI/5V/12V)
1 x RS-232/422/485 by DB-9 (RI/5V/12V)
2 x GbE LAN
4 x USB 3.0
1 x HDMI™ output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V lockable power jack
Audio AMP 3W + 3W (internal speakers)
Audio Codec ALC892
RAM Two 260-pin 2133/1867 MHz dual-channel
DDR4 SO-DIMMs (system max. 32 GB)
Power
Power consumption 12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory)
Environment
Operating Temperature -20°C~50°C
Safety & EMC CE / FCC
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C
IP Level IP 64 compliant front panel
Physical Characteristics
Color Black C
Mounting Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Dimensions (LxWxH) (mm) 396 x 250 x 64
Net Weight 4.5Kg
Construction Front Panel PC + ABS Plastic
Weight
Weight 4.5/6.5Kg
LCD
Size 15.6”
Resolution 1366 x 768 (16:9)
Brightness (cd/m2) 400
Contrast Ratio 500:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Viewing Angle (H-V) 170º / 160º
Backlight MTBF 50000 (LED backlight)
Touch
Touch Screen 5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Touch Controller PenMount DMC9000/ EETI EXC7200
Other Features
Microphone digital microphone
Camera 2-megapixel with low light function
OSD Function Software OSD
System Cooling Fanless
I/O Interface
I/O Interface 1 x RS-232 (DB-9 (RI/5V/12V))
1 x RS-422/485 (DB-9 (RI/5V/12V))
4 x USB 3.2 Gen1x1
1 x HDMI™ (output)
2 x LAN (Gbe)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x Power In (9-30V lockable power jack)

Ordering Information

AFL3-W15C-ULT3-i5/PC/4G-R14 Wide 15.6” 400 cd/m² 1366x768 fanless Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone , with AG, R14
AFL3-W15C-ULT3-C/PC/4G-R14 Wide 15.6” 400 cd/m² 1366x768 fanless Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R14

Package Contents

Package Content
  • 4 x Round head machine screw

  • 4 x Pan head machine screw

  • 2 x Fix holder

  • 1 x Power cord

  • 1 x Power adapter 96W; Vin: 90V~264V AC; Vout: 12VDC

  • 1 x RJ-45 to DB-9 COM port transfer cable

  • 1 x Touch pen
