IVCME-C604

PCIe Mini Video/ Audio Capture Card with 4-Channel Video/Audio Input, Total 120fps@D1 for 4 Channels (NTSC)

End of Life

End of Life Notice

* Effective Date: 2019/02/20

» Single card 4-channel composite video (NTSC/PAL) solution
» PCIe Mini card interface supported
» Compatible with Linux, Windows XP and Windows 7 (32-bit and 64-bit)
» Total 120fps @ D1 for 4 channels (NTSC)
» External GPIO daughter board with 4 inputs and 4 outputs (optional)
» SDK available for customer to create customized applications

Hardware Spec.

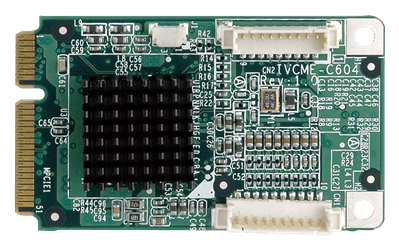

Appearance
Dimension 51 mm x 30 mm
Audio Processing
Audio Compression Software compression
Audio Sampling Frequencies 8kHz, 16kHz, 32kHz, 44.1kHz and 48kHz
Quantization 16-bit
Capture Interface
Alarm I/O yes
Audio Input 4 x Audio Input Channel(analog)
4 x Audio Input-RCA(RCA to DB-9 cable included)
Interface Type 1 x PCIe mini
Video Input 4 x Video Input-BNC
4 x Video Input Channel(composite video NTSC/PAL auto sensing)
Video Input-3G-SDI(BNC to DB-9 cable included)
Environment
Operating Temperature 0°C ~ 60°C, non-condensing
Others
Power Consumption 1.65W (3.3V@0.5A)
Software Support
SDK 1 x Linux
1 x Windows
OS Support 1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 7 64-bit
1 x Linux Ubuntu(14.04 (64-bit) Kernel version: 3.13.0-32-generic)
System Requirement
CPU x86 PC compatible computer
Memory 512MB or above
Video Processing
Video Chipset 1 x Conexant CX25854
Video Compression 1 x Software Compression
Video Input Resolution 720 x 576 (NTSC/PAL)
720 x 480 (NTSC/PAL)
720 x 288 (NTSC/PAL)
720 x 240 (NTSC)
720 x 248 (PAL)
352 x 240 (NTSC)
*NTSC: Total 120fps @ D1 for 4 channels
*PAL: Total 100fps @ D1 for 4 channels

Ordering Information

IVCME-C604-R10 Mini PCIe Video/Audio Capture Card with 4 channels video/audio input,total 120fps@D1 for 4 channels(NTSC)

Package Contents

Package Content
  • 1 x IVCME-C604 capture card

  • 1 x BNC to DB-9 cable

  • 1 x RCA to DB-9 cable

  • 1 x Video/Audio input cable kit

  • 1 x QIG


Download Specs.
