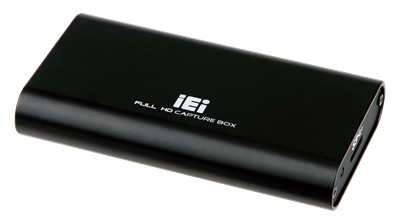

HDB-301R

USB 3.0 Uncompressed Video/Audio Capture Box with One Channel HDMI™ Input and One Channel HDMI™ Bypass Output, 1920x1080@60p

End of Life

iei-usb3-video-capture-box
iei-usb3-video-capture-box
iei-usb3-video-capture-box
  • iei-usb3-video-capture-box
  • iei-usb3-video-capture-box
  • iei-usb3-video-capture-box

End of Life Notice

* Effective Date: 2019/12/13

» 1-channel HDMI™ input and 1-channel HDMI™ bypass output
» Supports for 4:2:2 color spaces to provide the highest quality for your images
» HDMI™ bypass output supports video no delay pass through up to 1080p60, so you can watch original video while video processing
» Designed for professional video, machine vision, broadcast & post production industries
» For audio mastering, 24-bit 48kHz audio provides the power you need to integrate into any audio environment
» Supports DirectShow Software
» Windows/Linux/Mac OS supported

Hardware Spec.

Appearance
Dimension 105 mm x 58 mm x 18 mm
Audio Processing
Audio Sampling Frequencies 44.1k, 48k Hz
Capture Interface
Audio Input 1 x Audio Input Channel
1 x Audio Input-HDMI™(stereo)
Interface Type 1 x USB3.0
No Delay Passthrough 1 x Audio Output Channel
1 x Video Output Channel
1 x Video Output-HDMI™
1 x Audio Output-HDMI™(stereo)
Video Input 1 x Video Input Channel
1 x Video Input-HDMI™
Environment
Operating Temperature 0°C ~ 60°C (32° ~ 140°F), non-condensing
Others
Power Consumption 4W
Software Support
SDK 1 x Linux
1 x Windows
OS Support Operating System(support UVC)
1 x Linux Ubuntu(14.04.2 (64-bit ) (Kernel version: 3.16.0-30-generic))
1 x Microsoft Windows 10 32-bit
1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 7 64-bit
1 x Microsoft Windows 8.1 32-bit
1 x Microsoft Windows 8.1 64-bit
1 x Microsoft Windows 10 64-bit
1 x macOS(High Sierra 10.13 or above)
System Requirement
CPU Intel® Core™ i5-3400 or above
Memory 4GB or more
Video Processing
Color Space YUV 4:2:2
Video Compression 1 x Software Compression
Video Input Resolution 1920 x 1080 24p/25p/30p/50p/59.54p/60p
1680 x 1050 30p/60p
1440 x 900 30p/60p
1360 x 768 30p/60p
1280 x 1024 30p/60p
1280 x 800 30p/60p
1280 x 768 30p/60p
1280 x 720 30p/50p/59.94p/60p
1024 x 768 30p/60p
800 x 600 60p
720 x 576 50p
720 x 480 59.94p/60p
640 x 480 60p
Video Preview 1920 x 1080 24p/25p/30p/50p/59.54p/60p
1680 x 1050 30p/60p
1440 x 900 30p/60p
1360 x 768 30p/60p
1280 x 1024 30p/60p
1280 x 800 30p/60p
1280 x 768 30p/60p
1280 x 720 30p/50p/59.94p/60p
1024 x 768 30p/60p
800 x 600 60p
720 x 576 50p
720 x 480 59.94p/60p
640 x 480 60p

Ordering Information

HDB-301R-R10 USB 3.0 uncompressed video/audio capture box with one HDMI™ input channel and one HDMI™ output channel, 1920x1080@60p

Package Contents

Package Content
  • 1 x HDB-301R

  • 1 x USB 3.0 cable

  • 1 x QIG
