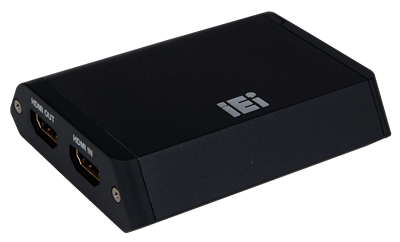

HDB-301L

USB 2.0 Video/Audio Capture Box with One Channel HDMI™ Input and One Channel HDMI™ Bypass Output, 1920x1080@30p, and H.264 Hardware Encoder

End of Life

End of Life Notice

* Effective Date: 2018/07/17

» 1-channel HDMI™ input with H.264 hardware compression and 1-channel HDMI™ bypass output
» High quality video recording up to 1080p30
» HDMI™ bypass output supports video no delay pass through up to 1080p60, so you can watch video while recording
» Provides DirectShow filter
» Windows/Linux OS supported

Hardware Spec.

Appearance
Dimension 89 mm x 74.83 mm x 21.6 mm
Net Weight 156g
Audio Processing
Audio Compression MPEG4-AAC
Audio Sampling Frequencies 44.1k, 48k Hz
Recording Data rate 128kbps
Capture Interface
Audio Input 1 x Audio Input Channel
1 x Audio Input-HDMI™(stereo)
Interface Type 1 x USB2.0
No Delay Passthrough 1 x Audio Output Channel
1 x Video Output Channel(1080p60)
1 x Audio Output-HDMI™(stereo)
1 x Video Output-HDMI™
Video Input 1 x Video Input Channel
1 x Video Input-HDMI™
Environment
Operating Temperature 0°C ~ 60°C (32° ~ 140°F), non-condensing
Functionality
Multiple Card Support 4 boxes, 4 channels
Scaling Video scaling down compression
Others
Power Consumption 4.5W
Software Support
SDK 1 x Linux
1 x Windows
OS Support 1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic))
1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 7 64-bit
System Requirement
CPU Intel® Core™2 Duo 2.4GHz or above
Memory 2GB or more
Video Processing
Recording Data rate 1~30Mbps
Recording Formats 1920 x 1080 24p/25p/30p 1280 x 1024 30p
1280 x 800 60p 1280 x 768 60p
1280 x 720 50p/60p 1024 x 768 60p
800 x 600 60p 720 x 576 50p
720 x 480 60p 640 x 480 60p
Video Compression 1 x Hardware Encoder(H.264/AVC High Profile Level 4.1)
Video Input Resolution 1920 x 1080 24p/25p/30p/50p/60p
1920 x 1080 60i/59.94i/50i 1280 x 1024 30p
1280 x 800 60p 1280 x 768 60p
1280 x 720 50p/60p 1024 x 768 60p
800 x 600 60p 720 x 576 50p
720 x 480 60p 640 x 480 60p

Ordering Information

HDB-301L-R10 USB2.0 Capture Box with one HDMI™ input,1920x1080@30p, and H.264 codec transcoding

Package Contents

Package Content
  • 1 x HDB-301L

  • 1 x USB cable (600mm)

  • 1 x QIG


Download Specs.
