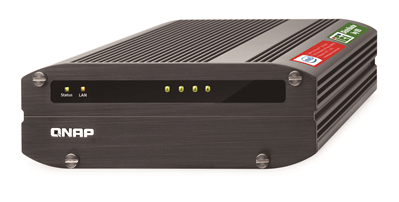

4-bay Industrial NAS/NVR for Tough or Mobile Environments

End of Life

End of Life Notice

* Effective Date: 2020/08/05

» Rugged design with high resistance to impact (100kgs pressure) and vibration (Compliant with the military-grade MIL-STD-810G-514.6E-1)
» Dust-resistant and fanless design
» Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 120°F)
» AES-NI hardware encryption acceleration
» Up to 221MB/s read and 214MB/s write speed with 2 Gigabit LAN ports
» Complete solutions for file sharing, backup, disaster recovery, and data security management

Hardware Spec.

Form factor
SBC Form Factor 22nm Intel® Atom™ quad-core 1.91GHz
Two 1333/1600 MHz DDR3L SO-DIMM slots (for dual-DIMM configurations, you must use a pair of identical DDR3L modules.)
I/O Interface
I/O Ports 2 x Gigabit RJ-45 Ethernet port
2 x USB 3.0
2 x USB 2.0
1 x HDMI™
Cooling method / System Fan Fanless
Drive Bays 4 x 2.5” SATA SSD/HDD
Physical Characteristics
Construction Power Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V
Power Input 2: 4-pin terminal block, 9-36V DC
*Power consumption:
HDD sleep mode: 9.01 W
In operation: 10.04 W
S3 sleep: 0.82 W
Dimensions 59 (H) x 180 (W) x 247 (D) mm
Weight 1.11 kg / 3.2 kg
Operating Temperature -40°C ~ 50°C

Ordering Information

IS-453S-8G-R10 Industrial Grade, Rugged NAS with 4 x 2.5" Drive bays, Intel Atom E3845 quad-core 1.9GHz, pre-installed 8GB DDR3L RAM

Package Contents

Package Content
  • 1 x IS-453S

  • 2 x Ethernet cable

  • 1 x AC adapter

  • 12 x Flat head screw (for 2.5 HDD)

  • 1 x Power cord

  • 1 x QIG
