5.7”/8”/10.4” Fanless Intel® Bay Trail Solution

End of Life

End of Life Notice

* Effective Date: 2021/09/07

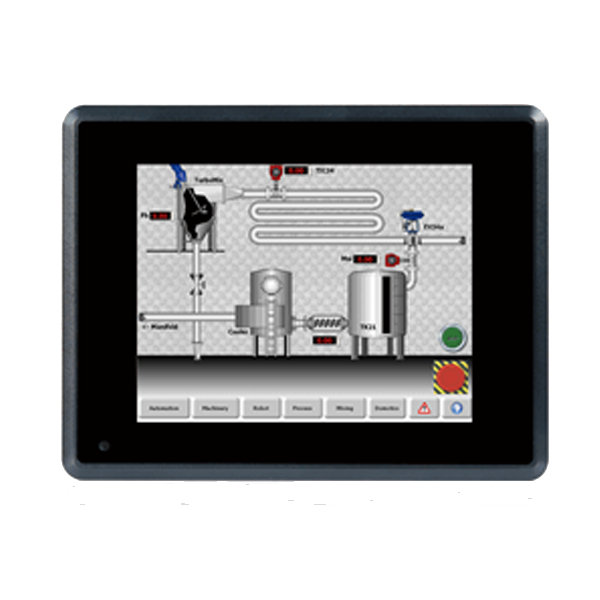

» 5.7”, 8” and 10.4” fanless industrial panel PC
» 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
» Low power consumption DDR3L memory supported
» IP 65 compliant front panel
» 9 V~30 V wide DC input
» mSATA SSD suppoted
» Dual GbE for backup
» -10°C~50°C extended operating temperature

Hardware Spec.

Backlight MTBF(hrs) 50000
Brightness(cd/m2) 550
Contrast Ratio 800 : 1
LCD Size 5.7”(4:3)
Max Resolution 640(W) x 480(H)
Humidity 10% to 95% (non-condensing)
IP Level Front IP 65
Operating Temperature -10°C~50°C (14°F~122°F)
Safety & EMC CE & FCC Class A certified
Storage Temperature -20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini slot
(with mSATA, PCIe/USB signal)
I/O Interface
I/O Ports and Switches 1 x RJ-45 LAN port
1 x RS-232 COM port (DB-9 connector)
1 x RS-422/485
2 x USB 3.0
2 x USB 2.0
1 x 9 V~30 V DC lockable DC jack (2-pin)
1 x Audio port (line-out)
1 x Power switch
RAM 2GB DDR3L 1600MHz on-board RAM
(system max. 4GB, by MOQ=300pcs)
LCD Color 262K
Pixel Pitch (mm) 0.18mm x 0.18mm
Viewing Angle (H-V) 160° / 140°
Physical Characteristics
Color Black C
Construction Aluminum front bezel
Cutout Dimensions 157.5 x 115.4
Dimensions (LxWxH) (mm) 136.4 x 178.5 x 56.3
Mounting Stand, panel mount, rack mount,
VESA 75x75
Power adapter 9V~30VDC
CPU Intel® Celeron® N2807
dual-core processor, 1.58GHz
Touch Controller PenMount DMC9000
Touch Screen 4-wire resistive type flat touch window
Weight 0.89Kg
I/O Interface
I/O Interface 1 x AT/ATX Switch
2 x USB3.0
2 x USB2.0
1 x Reset Button
1 x Power In((9-30V Lockable power jack))
1 x RS-232(((DB-9)))
1 x Power Switch
1 x LAN((RJ-45))
1 x Audio(((line-out)))
1 x RS-422/485

Ordering Information

PPC-F06B-BT-N1/2G/R-R10 5.7 inch 450 cd/m2 VGA Panel PC with Intel® Celeron® Processor N2807, TDP 4.3W, 2GB on-board DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10

Package Contents

Package Content
  • 1 x PPC-FxxB-BTi Panel PC

  • 1 x User Manual

  • 1 x Touch Pen

  • 1 x Power Cord

  • 1 x Screw Pack

  • 1 x Power Adapter
