End of Life Notice
* Effective Date: 2017/12/30

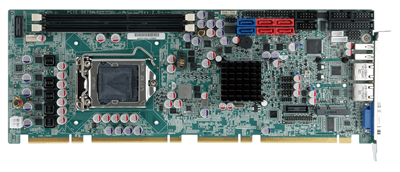

» Full-size PICMG 1.3 server grade solution
» LGA 1155 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® processors supported
» Up to 16 GB 1600 MHz dual-channel DDR3 SDRAM
» Supports dual independent display by VGA and DVI-D (DVI model)
» Supports PCIe Mini expansion
» Intel® PCIe GbE with Intel® AMT 8.0 support
» Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
» High-speed I/O interface provided through the 3rd gen PCIe add-on card and SATA 6Gb/s connectors
» TPM V1.2 hardware security provided by the TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Dimensions | |
|---|---|
| Dimensions | 338 mm x 126 mm |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| I/O Interface | |
| Digital I/O | 8-bit digital I/O |
| Display |
1 x VGA 1 x DVI-D (via header to IO-KIT-001-R20 |
| Expansion | PCIe signal and PCI signal via golden finger |
| I/O Interface | |
| I/O Interface | 8 x USB 2.0 |
| 1 x RS-422/485 | |
| 1 x KB/MS | |
| 4 x RS-232 | |
| 1 x LPT | |
|
2 x Ethernet(LAN1: Intel® 82574L PCIe controller LAN2: Intel® 82579 PHY with Intel® AMT 8.0) |
|
| 1 x I²C(1 x 4-pin wafer) | |
| Power | |
| Power consumption |
5V@3.98A, 12V@0.38A,Vcore_12V@7.81A, 3.3V@1.61A,5VSB@0.15A (3.4GHz Intel® Xeon® 2.2GHz with two 2 GB 1333 MHz DDR3 memory) |
| Power Supply | AT/ATX power supply supported |
| System | |
| Chipset | Intel® C216 |
| CPU | LGA 1155 socket supports LGA 1155 Intel®Xeon® E3/Core™ i3/Pentium®/Celeron®processor |
| Memory Max. | Two 240-pin 1600/1333 MHz dual-channel ECC and non-ECC unbuffered DDR3 SDRAM DIMMs supported (system max.16 GB) |
| Weight | |
| Weight | 1200g/NW: 420g |
Ordering Information
| SPCIE-C2160-DVI-R10 | Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Xeon E3/Core i3/Pentium and Celeron C216,DDR3,VGA/DVI-D,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio RoHS |
|---|---|
| SPCIE-C2160-R10 | Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Xeon E3/Core i3/Pentium and Celeron C216,DDR3,VGA,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio RoHS |
Package Contents
| Package Content |
|
|---|
