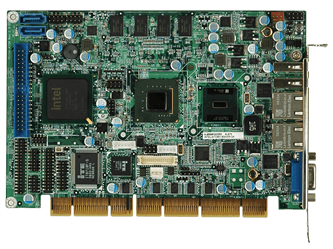

Half-size PCISA CPU Card with Intel® Atom™ Processor

End of Life

End of Life Notice

* Effective Date: 2016/08/19

» PCISA CPU card supports four PCI and ISA expansions
» Intel® Atom™ N270 processors at 1.6GHz core speed with 533 MHz FSB and 512KB L2 cache
» 512 MB of 533 MHz DDR2 SDRAM on board
» Supports VGA, HDTV-out up to 1080i and 18-bit dual-channel LVDS with dual display support
» Two SATA, one IDE, floppy and CF Type I/II for data storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® 945GSE + ICH7M
Memory Max. On-board 512 MB DDR2 533 MHz memory
One 200-pin (system memory max. 2GB)
533MHz DDR2 SDRAM DIMM supported
CPU Socket On Board
I/O Interface Ethernet
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Display VGA integrated in Intel® 945GSE
HDTV/TV supports NTSC/PAL and
HDTV resolution up to 1080i
18-bit dual-channel LVDS
Audio Supports 7.1 channel HD audio or 5.1
channel AC’97 audio by IEI audio kits
Power Power consumption
Environment Operating Temperature
Humidity 10% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x Internal RS-232
1 x Internal RS-232/422/485
4 x Internal USB 2.0
1 x LPT

Ordering Information

PCISA-945GSE-N270-512MB-R11 PCISA CPU CARD with Intel ATOM N270 1.6G,512MB memory on board,VGA/LVDS/HDTV,Dual PCIe GbE,SATA,USB 2.0,CF and Audio,RoHS
