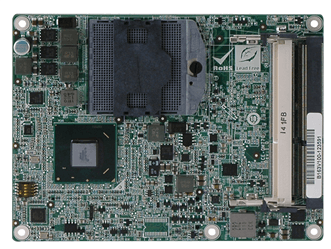

COM Express Basic Type 6 Module with Socket G2 Supports Intel® 2nd &3RD Generation Core™ i7/i5/i3 Celeron® Processor

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» Intel® Core™ i7/i5/i3/Celeron® processors supported
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» 1600/1333/1066 MHz dual-channel DDR3 memory supports up to 16 GB
» Supports 1.35V DDR3L
» 18/24-bit dual-channel LVDS, analog CRT and three DDI supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Output VGA integrated in Intel® QM77 (signal to baseboard)
3 x DDI (up to 2560x1600@60Hz)
1 x VGA up to QXGA (up to 2048x1536@75Hz)
1 x 18/24-bit dual-channel LVDS up to UXGA (up to 1920x1200@60Hz)
Humidity 5% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
I/O Interface
Ethernet Intel® 82579LM
Expansion 1 x PCIe x16 signal (to baseboard)
7 x PCIe x1 signal (to baseboard)
I/O Interface
I/O Interface 4 x USB 3.0
2 x RS-232
8 x USB 2.0
Power consumption +12V@1.75A, Vcore _12V@3.33A (Intel® 1.8GHz CPU with 4 GB 1333 MHz DDR3
Chipset Intel® QM77
CPU Socket G2 for 2nd & 3rd generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
Memory Max. Two 204-pin 1600/1333/1066 MHz dual-channel DDR3 SDRAM unbuffered DIMMs
supported (system max. 16GB)
Supports 1.35V DDR3L
Storage 2 x SATA 3Gb/s (signal to baseboard)
2 x SATA 6Gb/s (signal to baseboard)

Ordering Information

ICE-QM770-R10 COM Express Basic Type 6 Module,Intel 22nm Core i7/i5/i3/Pentium/Celeron Processor,VGA/LVDS,GbE,SATAIII,USB 3.0 and Audio,RoHS

Download Specs.
