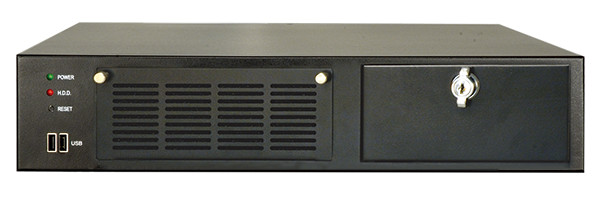

RACK-220G

2U 6-slot Full-size Rackmount Chassis

» RoHS compliant design
» Two USB ports on the front panel
» Two 8 cm cooling fans with replaceable fan filter
» One 5.25” and one 3.5” drive bays
» One 3.5” internal hard drive bay
» Lockable door prevents unauthorized access

Hardware Spec.

Form factor
SBC Form Factor Full-size, slot CPU card
I/O Interface
I/O Ports 2 x USB
Expansion Slots
Expansion Slots 6 slots
System
Cooling method / System Fan 2 x 8 cm
Drive Bays 1 x 5.25”
1 x 3.5”
1 x 3.5” HDD (internal)
Indicator&Buttons
Buttons Power switch, reset button
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color
Color W: White/B: Black
Dimensions
Dimensions 488 mm x 431 mm x 89 mm
Weight
Weight 8.2 kg/12.4 kg(Net/Gross)
Environment
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90%

Ordering Information

RACK-220GBPX-R20/300W 2U 6-slot Full-size Chassis for PICMG 1.0 SBC,Black,Powder paint,2x 8cm fan,with 300W ATX PSU,RoHS
RACK-220GBPX-R20 2U 6-slot Full-size Chassis for PICMG 1.0 SBC ATX Power Switch,Black,Powder paint,W/O PSU,RoHS
RACK-220GBATX-R20/300W 2U microATX motherboard Rackmount Chassis,Black,Powder paint,2x 8cm fan,with 300W ATX PSU,RoHS
RACK-220GBATX-R20 2U microATX motherboard Rackmount Chassis,Black,Powder paint,2x 8cm fan,W/O PSU,RoHS
