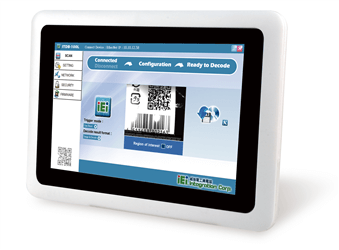

ICECARE-10W

Mobile Sales Assistant

End of Life

End of Life Notice

* Effective Date: 2018/04/17

» 10.1” TFT LCD with capacitive touch
» Intel® Celeron® 1007U or Intel® Core™ i7-3517UE platform
» Powered by Windows® Embedded Standard 7
» Built-in Bluetooth and Wi-Fi
» Built-in smart card reader and magnetic stripe card reader
» 1D/2D barcode reader, 13.56MHz RFID reader
» Optional Windows® 8 operating system

Hardware Spec.

Display
Brightness(cd/m2) 350
LCD Size 10.1” TFT LCD
Max Resolution 1280 x 800
Touch Screen Capacitive type
Viewing Angle 85/85/85/85 Deg.
Environment
Humidity 5%~95%, non-condensing
Operating Temperature 0°C~40°C
I/O Interface
I/O Interface 2 x USB 2.0
1 x Mic
1 x Speaker
Physical Characteristics
Dimensions (LxWxH) (mm) 290 x 206.5 x 22.5
Net Weight 1.1 kg
System
CPU Intel® Celeron® 1007U or Intel® Core™ i7-3517UE platform
On-board Memory On-board 4GB DDR3

Ordering Information

ICECARE-10W-CE-R10 Intel Celeron 1007U CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, 1D/2D Barcode, MSR, SCR, RFID, WS7P, RoHs
ICECARE-10W-I7-R10 Intel Core I7-3517U 1.9GHz CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, 1D/2D Barcode, MSR, SCR, RFID, WS7P, RoHs
ICECARE-10W-I7-ET-R10 Intel Core I7-3517U 1.9GHz CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, WS7P, RoHs
ICECARE-10W-CE-ET-R10 Intel Celeron 1007U CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, WS7P, RoHs
