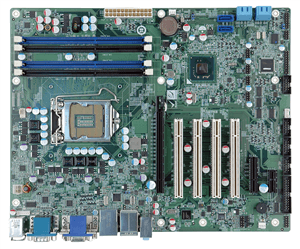

ATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67

End of Life

End of Life Notice

* Effective Date: 2020/12/31

» LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
» Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM
» Intel® PCIe GbE with Intel® AMT 7.0 support
» USB 3.0 and SATA 6Gb/s supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU LGA1155 socket supports Intel® Core™ i7/i5/i3/ Pentium®/Celeron® processor
Chipset Intel® H67
Memory Four 240-pin 1333/1066 MHz dual-channel DDR3 SDRAM unbuffered DIMMs
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage 6 x SATA :4 X 3Gb/s (RAID 0/1/5/10 supported)
2 X 6Gb/s (RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x VGA :up to 2048x1536@75Hz
1 x DVI-D :up to 1920x1200@60Hz
1 x HDMI™ :up to 1920x1200@60Hz
Ethernet 2 x LAN :LAN1: Intel® 82583V PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 7.0
Audio Description: Realtek ALC662 HD Audio codec
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 1 x External RS-232
4 x Internal RS-232 :2x5 pin ,p=2.54
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
8 x Internal USB 2.0 :2x4 pin, p=2.54
2 x PS/2 :1 X 1x6 pin
1 x LPT :2x13 pin, p=2.54
Expansion 1 x PCIe x16
1 x PCIe x4
1 x PCIe x1
4 x PCI Slot
Other Features
TPM 2x10 pin
Power Consumption 3.3V@1.65A, 5V@6.31A , 12V@0.18A,
Vcore@7.88A, 5VSb@0.15 (Intel® Core™ i5-
2400 3.10GHz CPU with four 4 GB 1333 MHz
DDR3 memory)
Power Supply Support AT/ATX mode
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-Q670-R30 ATX Motherboard supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel Q67,DDR3,VGA/DVI/HDMI™,Dual Intel PCIe GbE,USB 3.0,SATA 6Gb/s,HD Audio,RoHS

Package Contents

Package Content
  • 1 x IMBA-Q670 single board computer

  • 1 x I/O shielding

  • 1 x Mini jumper pack

  • 4 x SATA cable

  • 1 x QIG
