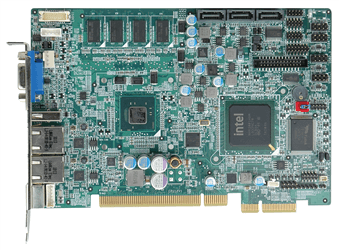

PICOe-PV-D4251/N4551/D5251

Half-size PCIe CPU Card with Intel® Atom™ D425/N455/D525

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» PCIe CPU card supports four PCIe x1 or one PCIe x4, and four PCI expansions
» Intel® Atom™ D525/D425/N455 processor
» 1 GB of DDR3 800 MHz SDRAM on board and one expansion SO-DIMM slot support
» Supports VGA and 18-bit single-channel LVDS with dual display support
» I/O includes three RS-232, one RS-232/422/485, seven USB 2.0 and three SATA 3Gb/s
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Storage
Storage 1 x CF Type II
3 x SATA 3Gb/s
I/O Interface
Display 1 x VGA (up to 2048 x 1536 @75Hz)
Environment
Humidity 10% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Power
Power consumption 5V@3.38A, 12V@0.54A (Intel® Dual Core
Atom™ D525 1.80GHz with 1GB DDR3
800MHz memory on board)
5V@3.28A, 12V@0.43A (Intel® Single
Core Atom™ D425 1.80GHz with 1GB
DDR3 800MHz memory on board)
5V@3.13A, 12V@0.32A (Intel® Single
Core Atom™ N455 1.66GHz with 1GB
DDR3 800MHz memory on board)
I/O Interface
Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
System
Chipset Intel® B65
CPU Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
I/O Interface
I/O Interface 6 x Internal USB 2.0
I/O Interface
Ethernet LAN1: Realtek RTL8111E GbE controller with ASF
2.0 support
LAN2: Realtek RTL8111E GbE controller
System
CPU Socket LGA1155
Memory Max. One 204-pin 800MHz DDR3 SDRAM SO-DIMM
supported (system max. 4GB for D525/D425, 2GB for
N455) (compatible w/128MB*8 SDRAM)
On-board 1 GB DDR3 800 MHz memory
Expansion Slots
Expansion Slots PCIe signal and PCI signal via golden finger
I/O Interface
I/O Interface 3 x RS-232
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset
I/O Interface
Audio Supports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit
I/O Interface
I/O Interface 1 x USB 2.0

Ordering Information

PICOe-PV-D5251-R11 Half-size PCIe CPU card with Intel Atom Dual Core D525 1.80GHz/1MB L2 cache, DDR3 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB2.0, SATA II and Audio, RoHS
PICOe-PV-D4251-R11 Half-size PCIe CPU card with Intel Atom Single Core D425 1.80GHz/512KB L2 cache, DDR3 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB2.0, SATA II and Audio, RoHS
PICOe-PV-N4551-R11 Half-size PCIe CPU card with Intel Atom Single Core N455 1.66GHz/512KB L2 cache, DDR3 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB2.0, SATA II and Audio, RoHS
