PCIe Expansion Riser Cards for IEI 2.5” SBC

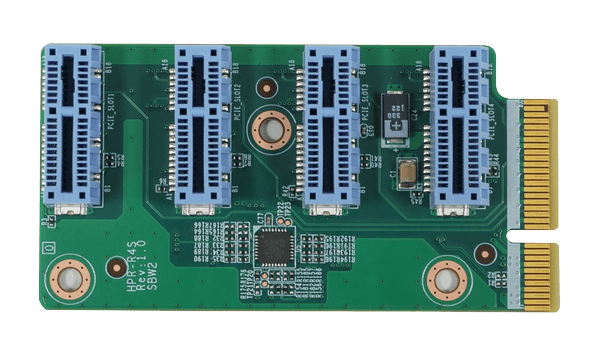

HPR-R4S Front
HPR-R4S Back
  • HPR-R4S Front
  • HPR-R4S Back
PCIe x4 to four PCIe x1,on the right side

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 43 mm * 83 mm
I/O Interface
Expansion 4 x PCIe x1
Operating Temperature 0°C~60°C
Storage Temperature -30°C~70°C
Humidity 5 ~ 95% non-condensing
Card Slot Interface
PCIe PCIe x4

Ordering Information

HPR-R4S-R10 PCIe x4 to four PCIe x1 left riser card for HYPER on the right side

Package Contents

Package Content
  • 1 x HPR-R4S Riser Card

  • 1 x bracket
