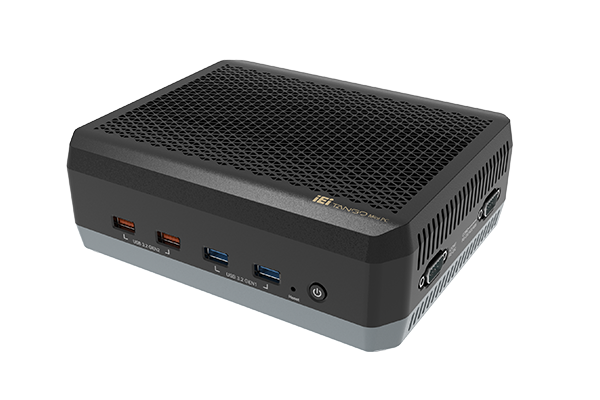

» Compact Industrial Mini PC
» Smart Fan system
» 12th Intel® Core™ i Processors
» Triple 2.5GbE LAN
» Built-in Wi-Fi 6E & Bluetooth 5.2 module (internal antenna)
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
|
| Expansion Slots | |
| Expansion Slots |
|
| System | |
| Cooling method / System Fan | Smart Fan |
| Drive Bays |
1 x 2.5” SATA 6Gb/s HDD/SSD bay (support up to 9.5 mm SSD) |
| Indicator&Buttons | |
| Buttons |
1 x Power button(with LED) 1 x Reset button |
| Indicators | 1 x Power LED |
| Physical Characteristics | |
| Construction | ABS Plastic + Aluminum |
| Color | |
| Color | Black C & grey (Pantone 430C) |
| Dimensions | |
| Dimensions | 192.09 x 158 x 64 (mm) |
| Weight | |
| Weight | 1.29 / 2.34kg |
| Environment | |
| Operating Temperature | 0°C ~ 40°C with 0.7M/S air flow (SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Safety & EMC | CE/RED/FCC/UKCA/ compliant |
| OS Support | |
| OS Support | Microsoft® Windows® 10/11, Linux |
Ordering Information
| TANGO-7010-i9AWC-R10 | Fan System with Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
|---|---|
| TANGO-7010-i7AWC-R10 | Fan System with Intel® Core™ i7-12700TE 1.4 GHz (up to 4.6 GHz, 12-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
| TANGO-7010-i5AWC-R10 | Fan System with Intel® Core™ i5-12500TE 1.9 GHz (up to 4.3 GHz, 6-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
| TANGO-7010-i3AWC-R10 | Fan System with Intel® Core™ i3-12100TE 2.1 GHz (up to 4 GHz, quad core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
| TANGO-7010-W10IoT21-V-R10 [Peripheral] |
OS Image with Windows® 10 Enterprise Value 64-bit 2021 LTSC for TANGO-7010 i3 & i5 Series, with DVD-ROM, RoHS |
| TANGO-7010-W10IoT21-H-R10 [Peripheral] |
OS Image with Windows® 10 Enterprise High End 64-bit 2021 LTSC for TANGO-7010 i7 & i9 Series, with DVD-ROM, RoHS |
Package Contents
| Package Content |
|
|---|
