IMBA-C2260

ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron®

End of Life

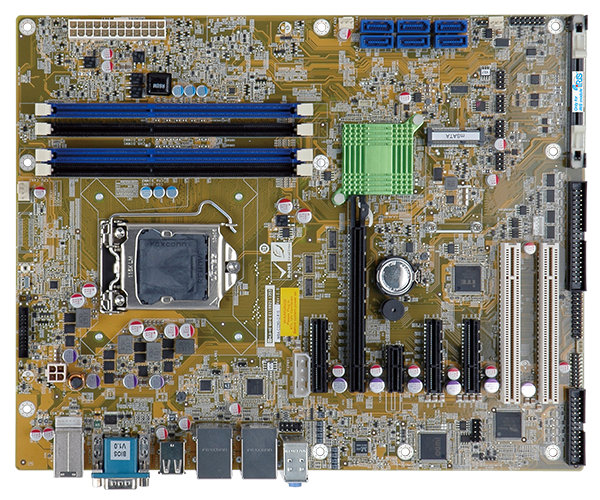

IMBA-C2260 ATX Industrial Motherboard
  • IMBA-C2260 ATX Industrial Motherboard

End of Life Notice

* Effective Date: 2023/06/08

» LGA1150 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® processor supported
» Dual-channel DDR3 1600/1333 MHz support up to 32 GB
» Intel® PCIe GbE with Intel® AMT 9.0 support
» Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
» USB 3.0, SATA 6Gb/s and mSATA supported
» High-speed interface for one PCIe x8 or two PCIe x4 add-on cards
» IEI jumper-less function
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support IPMI 2.0 via iRIS-2400 module

Hardware Spec.

System
CPU LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
Chipset Intel® C226
Memory Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC
unbuffered DIMMs
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 6 x SATA :6Gb/s(RAID 0/1/5/10 supported)
1 x mSATA :colay SATA 6
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I217LM with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller with NCSI support
Audio Description: Realtek ALC662 HD codec supports 5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 1 x External RS-232
4 x Internal RS-232 :2x20 pin, p=2.54
1 x Internal RS-422/485 :1x4 pin, p=2.0
4 x External USB 2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.54
2 x PS/2 :1 X 1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
1 x LPT :2x13 pin, p=2.54
Expansion 1 x PCIe x16
3 x PCIe x4 :support PCIe x1
Default setting: 1 x PCIe x8 Gen 3 + 2 x PCIe x4 Gen 3 signal
Optional setting: 1 x PCIe x16 Gen 3 by BIOS setting
1 x PCIe x1
2 x PCI Slot
Other Features
TPM 2x10 pin
iRIS 1 X iRIS-2400 slot
Power
Power Consumption 3.3V@0.57A, 5V@4.50A, 12V@0.14A, Vcore_12V@5.20A, 5VSB@0.19A
(Intel® E3-1240 v3 3.4GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)
Power Supply Support ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-C2260-i2-R11 ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron® per Intel® C226, DDR3, VGA, Dual Intel® PCIe GbE, Four USB 3.0, Six SATA 6Gb/s, HD Audio, iRIS-2400 and RoHS

Package Contents

Package Content
  • 1 x IMBA-C2260-i2 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
