Engage your audience by taking digital signage to the next level
With the peak of the global pandemic behind us and lockdown restrictions have lifted, consumer foot traffic into physical stores, shopping malls and
restaurants is on the increase. Retail businesses need to offer better customer shopping experience to resist the convenience and prices of e-commerce,
which means the presence of digital displays is taking a more important part than ever in retail industry. Currently, not only can digital signage offer
eye-catching graphics and visual effects to grab people's attention, but it also can generate real-time and context-dedicated content by collecting customers'
data or provide interactive function. Digital signage applications can enhance customers' experiences, and provide an eco-friendly and sustainable
alternative, avoiding paper wastage and reducing power usage.
Stand out from competitive retail industry with right digital signage player

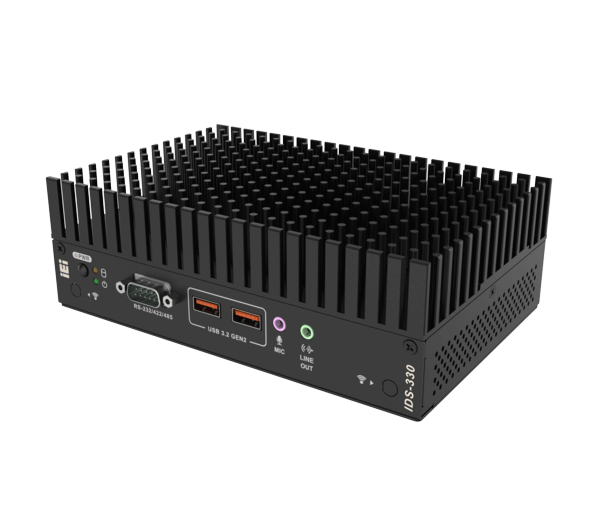

Built with 12th Gen Intel® Core™ processors (codenamed Alder Lake), the small footprint digital signage player IDS-330 is exclusively designed for graphic-intensive digital signage applications and video walls by virtue of its four HDMI™ displays, stunning 4K resolution and great acceleration in graphic workloads powered by Intel® Iris® Xe. The IDS-330 supports multiple remote management options, including wireless connection and Intel vPro® Enterprise technology, for less maintenance efforts and more effective management. When it comes to the reliability, its fanless design reduces risks of any system downtime, making IDS-330 ideal for running in outdoor environment.
Superior Performance with 12th Gen Intel® Core™ processors
The IDS-330 is powered by 12th Gen Intel® Core™ i5/i7 processors, which delivers up to 33% better CPU performance and 43% higher single thread rating than the former generation thanks to its unique combination of two Performance-cores and eight Efficient-cores.
Based on the hybrid core architecture, the Performance-core takes care heftier processing loads and graphically intensive workloads, while the Efficient-core delivers multithreaded performance for background tasks. Therefore, 12th Gen Intel® Core™ processors are capable of handling highly-threaded tasks and graphics-intensive workloads.
Tailor-made for high-end digital displays
1. Quad Independent HDMI™ displays
The IDS-330 comes with four independent HDMI™ 2.0 outputs to support four independent displays in stunning 4K quality. It is ideal for deployment of 4K
video wall in high-end department stores, luxury hotel lobbies, headquarters buildings, and other public spaces, allowing businesses to drive multiple
screens from a single device.
2. Visual explosions and AI workloads acceleration with Intel® Iris® Xe Graphics
The integrated GPU based on Intel® Iris® Xe architecture provides up to 96 Execution Units (EUs) and impressive 4K image and video quality to generate life-like and immersive visual content and targeted messages for digital signage applications
Additionally, the IDS-330 features the built-in technology Intel® Deep Learning Boost that can accelerate complex AI workloads from data analytics and machine learning to image recognition to facilitate customized and interactive content creation on digital signage.
Remote management capabilities for better IT/OT efficiency
The communication capability of digital signage players is very important. The IDS-330 is equipped with dual 2.5GbE LAN ports and one M.2 B Key with SIM slot for wireless connection to easily enable advanced remote management functions. In addition to provide 2.5 times faster in network speed than standard Ethernet port (1GbE), the IDS-330 can also act as a cloud-based gateway to manage remotely via mobile devices and deliver visual content through LTE/WiFi connectivity or wired connection. With remote management feature, the IDS-330 can serve both indoor and outdoor digital signage needs.
Thanks to built-in12th Gen Intel® Core™ i5/i7 processors, this compact digital signage player brings an exclusive technology, Intel® vPro® Enterprise platform, for modern manageability and improved stability. This technology provides hardware-based security feature to protect the system against attacks, as well as remote management functions that allows IT team to manage remotely digital signage even when devices are powered off or out of band. This results in minimized need for on-site maintenance, reduced operation costs and less work interruptions, which translate into IT efficiency for business users.
The IDS-330 also supports HDMI™-CEC function that allows to remotely turn on/off multiple displays* with only one remote control for easier management and energy saving.
*Displays also must have HDMI™-CEC feature
Higher durability and reliability for 7/24 operation
The reliability definitely matters for digital signage players since most of digital displays including video walls and DOOH advertising (Digital Out-of-home
Advertising) require non-stop operation. 12th Gen Intel® Core™ processors, with TDP of only up to 28 watts, contribute energy-efficient feature to ensure
reliable performance for continuous visual content delivery. With fanless design, there are fewer moving parts to cause potential damages to other
electronic components. The simple lack of a fan also prevents dust and debris that can harm the PC from building up in the system.
Ease of installation in limited Space
In addition to the palm-size design, The IDS-330 comes with VESA mounts option that allows for easy and simplified installation in any convenient
surface-even on the back of the display-where the space is atypical and restricted.
(Digital Out-of-home Advertising )
Interactive Digital Signage
|SBC Form Factor||
|Cooling method / System Fan||
4-pin external system fan connector
1 x Power button
1 x Reset button
1 x Power LED (green)
1 x HDD LED (yellow)
|Construction||Extruded aluminum alloy|
|Dimensions||176 x 115.6 x 55.2|
|Weight||0.94 / 1.7 kg|
|Operating Temperature||-10°C ~ 40°C with air flow|
|Humidity||10% ~ 95% non-condensing|
|Operating Vibration||10-500 Hz,1.04 Grms, random, 1 hr/axis|
|Operating Shock||Half-sine wave shock 5G, 11ms, 100 shocks per axis|
|Safety & EMC||CE/FCC compliant|
|OS Support||Microsoft Windows 10 / Windows 11, Linux|
|IDS-330-ADL-P-i7C-R10||Fanless embedded system with Intel®Alder Lake-P i7, on-board 8GB LPDDR4x memory, four HDMI™ display, 12V DC, two 2.5GbE and RoHS|
|IDS-330-ADL-P-i5C-R10||Fanless embedded system with Intel®Alder Lake-P i5, on-board 8GB LPDDR4x memory, four HDMI™ display, 12V DC, two 2.5GbE and RoHS|
