63050-010500-010-RS

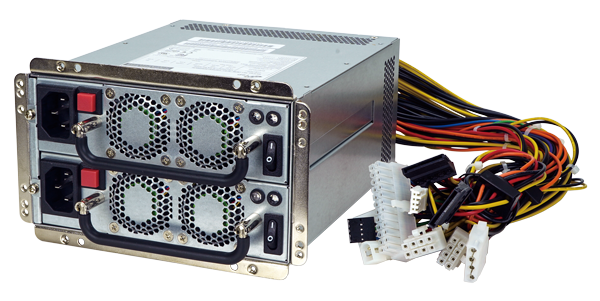

500 W ATX Mini Redundant Power Supply

500 W ATX Mini Redundant Power Supply

Hardware Spec.

Environment
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~80°C
Input
Voltage 90-264 VAC
Frequency 47-63 Hz
Input Current 6 A (RMS) @115 VAC, 3 A (RMS) @230 VAC
Inrush Current 40 A max. for 115 VAC, 80 A max. for 230 VAC
Output
Voltage +3.3V/20A,+5V/20A,+12V/40A,-5V/0.3A,-12V/0.5A,+5Vsb/3A
General
Watt 500W
Efficiency 0.84
MTBF 100,000 hours
Dimensions 150 × 84× 190 mm

Ordering Information

63050-010500-010-RS Redundant Power;FSP;FSP500-60MRB(S);9PR5000712;Active PFC;Vin:90~264VAC;500W;Vout:ATX;ATX;CCL;RoHS
63050-010500-000-RS Redundant Power;FSP;FSP500-40MRB(M);9PA500C614;Active PFC;Vin:90~264VAC;500W;UNIT,meet 80plus(GOLD);Vout:12VDC/-12VDC/5VSB;Gold Finger;CCL;RoHS
