63030-010150-000-RS

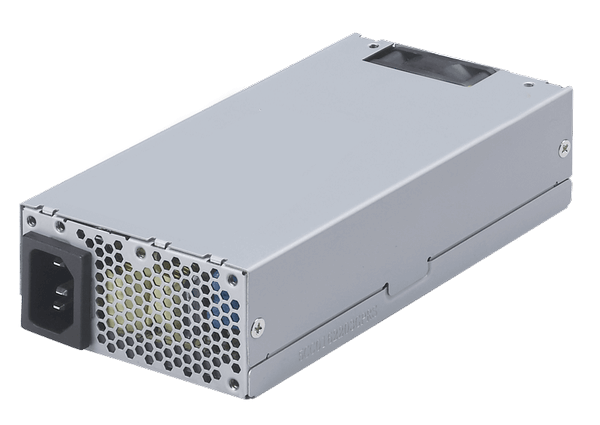

1U flex ATX 150W Power Supply

1U flex ATX 150W Power Supply

Hardware Spec.

Input
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 3A (RMS)@115VAC, 1.5A (RMS)@230VAC
Inrush Current 80A max. for 115VAC, 160A max. for 230VAC
Output
Voltage +3.3V/10A,+5V/14A,+12V/10A,-12V/0.3A,+5Vsb/2.5A
Over Voltage Protection +3.3V: 3.7V-4.8V
+5V: 5.55V-7.0V
+12V1 : 13.3V-16V
Short Circuit Protection +3.3V, +5V, +12V, -12V shutdown and latch off
General
Watt 150
Efficiency 87%
MTBF 100000
Operating temperature 0°C ~ 50°C
Storage temperature -20°C ~ 80°C
Dimensions 150 x 81.5 x 40.5
Output Connector 1 x 20+4-PIN ATX,
1 x 4-pin 12V CPU,
1 x HDD/CDROM,
1 x FDD,
2 x SATA

Ordering Information

63030-010150-000-RS FLEX;FSP;FSP-150-50FBB;9PA1507909;Active PFC;Vin:90~264VAC;150W;150*81.5*40.5mm;;;80Plus(SILVER);Vout:ATX;ATX;CCL;RoHS
