» M.2 2230 AE Key form factor
» High speed wireless connection,WI-FI 6E
» Low power consumption and high performance
» Fully qualified Bluetooth 5.2
» Solid design with external antenna diversity
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 22mm x 30mm x 2.4mm |
| Net Weight | 3.28g |
| Wireless | |
| Wi-Fi | Frequency range: 5GHz/6GHz |
| Bluetooth | Frequency range: 2402MHz~2483MHz |
| Others |
|
| Environment | |
| Operating Temperature | 0°C ~ 70°C |
Ordering Information

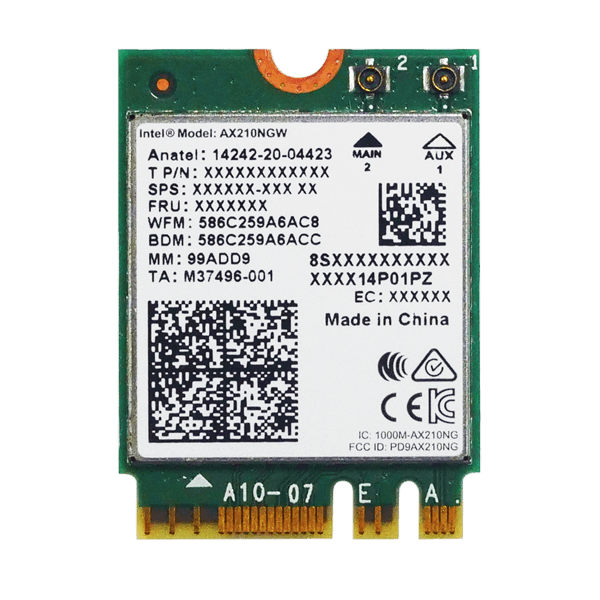

| EMB-WIFI-KIT02I3-R10 | 2T2R M.2 wifi module kit for embedded system, IEEEE802.11a/b/g/n/ac/ax, 1 x M.2 AE Key Wireless LAN & Bluetooth 5.2;Intel;AX210.NGWG Module, 2 x RF cable , 2 x Antenna; RoHs |
|---|
