PulM-100G2SF-CX6

Mellanox ConnectX-6 Lx based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x16 interface

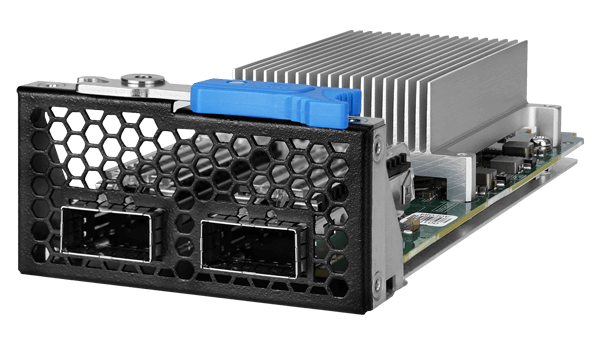

PulM-100G2SF-CX6 100GbE Network Module
PulM-100G2SF-CX6 100GbE Network Module
PulM-100G2SF-CX6 100GbE Network Module
  • PulM-100G2SF-CX6 100GbE Network Module
  • PulM-100G2SF-CX6 100GbE Network Module
  • PulM-100G2SF-CX6 100GbE Network Module
• ConnectX-6 Dx dual 100GbE network IC support 1/10/25/40/50/100 Gb/s
• Ethernet with Host Interface > PCIe Gen 3.0/4.0 x16 Cyber Security
• Inline hardware IPsec encryption & decryption
• Inline hardware TLS encryption & decryption
• Data-at-rest AES-XTS encryption & decryption
• Platform security : 1. Hardware root-of-trust, 2.Secure firmware update
• Stateless Offloads
• TCP/UDP/IP stateless offload > LSO, LRO, checksum offload
• Advanced Timing & Synchronization
• Storage Accelerations
• RDMA over Converged Ethernet (RoCE)

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 162.2 x 74 x 41.85
I/O Interface
Ethernet 2 x LAN: 2 x QSFP28
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE, FCC, RoHS
Card Slot Interface
PCIe PCIe 4.0 x16
Card Features
Speed 1/10/25/40/50/100 Gb/s
Controller Chip Mellanox ConnectX-6 Dx

Package Contents

Package Content
  • 2 x PulM-100G2SF-CX6
