HTB-210-Q470

AI Box PC with 10th Gen Intel® Core™ processor

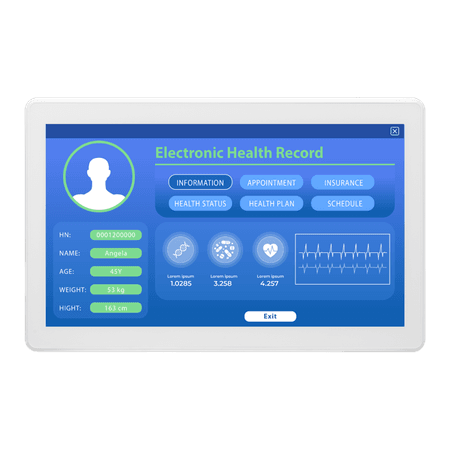

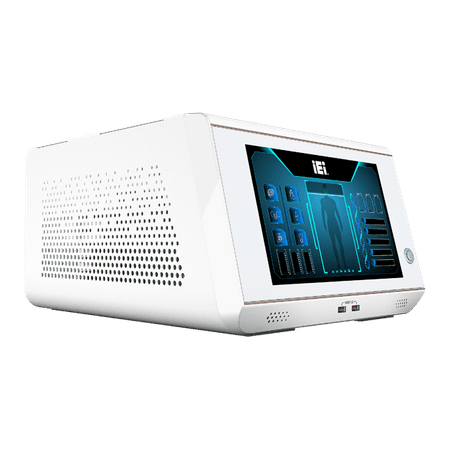

HTB-210-Q470 Medical Box PC
HTB-210-Q470 Medical Box PC
HTB-210-Q470 Medical Box PC
HTB-210-Q470 Medical Box PC
  • HTB-210-Q470 Medical Box PC
  • HTB-210-Q470 Medical Box PC
  • HTB-210-Q470 Medical Box PC
  • HTB-210-Q470 Medical Box PC
» 10th Gen Intel® Xeon® & Core™ processor platform with Intel® Q470 chipset
» PCIe x4 slot supports capture cards or other applications
» Compact edge device with great computing & graphics performance
» PCIe x16 slot supports NVIDIA GPU Acceleration Card
» Two 260-pin 2666/2133MHz Dual-Channel DDR4 SODIMM unbuffered Memory supported up to 128GB

IEI AI Box PC HTB-210-Q470 Product Introduction


Hardware Spec.

Form factor
SBC Form Factor
  • 10th Gen Intel® Xeon® & Core™ processor platform with Intel® Q470 chipset
  • PCIe x4 slot supports capture cards or other applications
  • Compact edge device with great computing & graphics performance
  • PCIe x16 slot supports NVIDIA GPU Acceleration Card
  • Two 260-pin 2666/2133MHz Dual-Channel DDR4 SODIMM unbuffered Memory supported up to 128GB
I/O Interface
I/O Ports 1 x USB Type C (USB/DP)
2 x USB 3.2 GEN1
2 x USB 2.0 (front side)
2 x Intel® I225-V PCIe controller (2.5GbE)
1 x RS-232/422/485
1 x HDMI™ (up to 4096 x 2304@30Hz)
Expansion Slots
Expansion Slots 1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x16 slot
1 x M.2 A key 2230 slot (PCIe x2 and USB 2.0)
1 x M.2 M key 2280 slot (PCIe x4 and SATA)
System
Cooling method / System Fan Smart Fan
Indicator&Buttons
Buttons 1 x Power button
1 x AT/ATX switch
Indicators 1 x Power LED
Physical Characteristics
Construction Metal housing (SECC)
Color
Color White
Dimensions
Dimensions 140 x 306.7 x 171 mm
Weight
Weight 2800 g
Environment
Operating Temperature 0°C ~ 40°C
Humidity 10% ~ 95% (non-condensing)

Ordering Information

HTB-210-Q470/2A-R11 Embedded system w/o CPU, w/o RAM, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, for ATO only, R11

Package Contents

Package Content
  • 1 x 180W Power Adapter

  • 1 x Power Cord

  • 4 x HDD Screw
