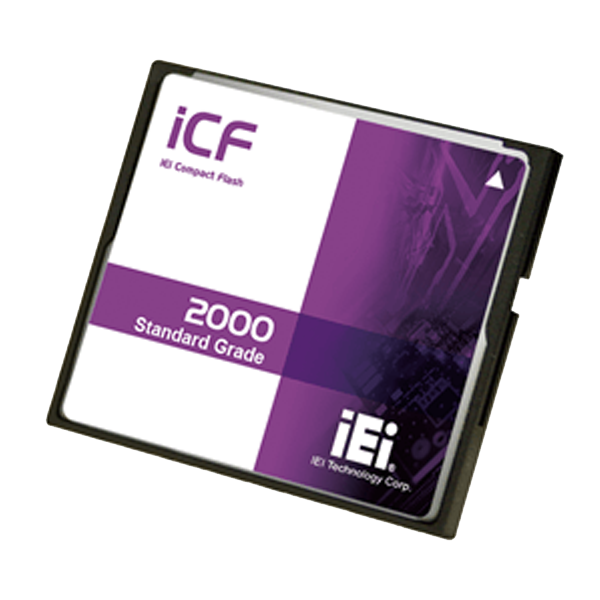

ICF-2000

CF Card Series SLC

  • Overview
    CF Card Series SLC

  • Specifications

    • Hardware Spec.

      Spec Item Description
      ATA Security
      ATA SecurityYes
      Capacity (GB)
      Capacity (GB)512MB~8GB
      DC Power Input
      DC Power Input+3.3V-+5V single power supply operation
      Dimensions
      Dimensions42.8 x 36.4 x 3.3
      Flash Type
      Flash TypeSLC
      IDE Transfer Mode
      IDE Transfer ModePIO mode 0-4
      MwDMA mode 0-4
      UltraDMA mode 0-4
      Max. Power Consumpation
      ConsumpationMax. Power Consumpation0.75W (5V x 125mA@210mA)
      P/N
      STD(0°C~+70°C)ICF-2000IPD-512MB
      ICF-2000IPD-1GB
      ICF-2000IPD-2GB
      ICF-2000IPD-4GB
      ICF-2000IPD-8GB
      WT(-40°C~+85°C)ICF-2000WPD-512MB
      ICF-2000WPD-1GB
      ICF-2000WPD-2GB
      ICF-2000WPD-4GB
      ICF-2000WPD-8GB
      S.M.A.R.T
      S.M.A.R.TYes
      Sequential R/W
      Sequential R/W40/30 MB/sec
      Environment
      Operating Temperature0°C~+70°C (Standard)/-40°C~+85°C (Industrial)
      Operating VibrationN/A
      Operating Shock1500G/0.5ms
      Storage Temperature-55°C~+95°C

    • Ordering Info.

      Item No. Description
      ICF-2000WPD-8GB
      ICF-2000WPD-512MB
      ICF-2000WPD-4GB
      ICF-2000WPD-2GB
      ICF-2000WPD-1GB
      ICF-2000IPD-8GB ICF 50 PIN 8GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-2000IPD-512MB
      ICF-2000IPD-4GB ICF 50 PIN 4GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-2000IPD-2GB ICF 50 PIN 2GB,Toshiba Flash,Industrial CF card, iCF 2000 Dual Channels,High Speed,SLC,0℃~70℃,R:40MB/s W:20MB/s
      ICF-2000IPD-1GB
