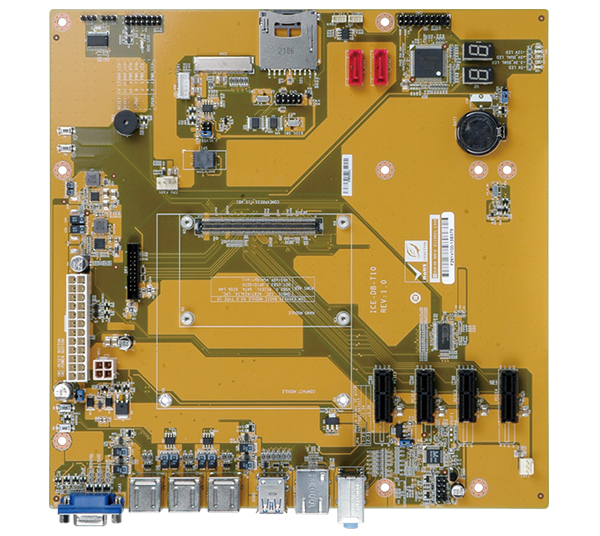

ICE-DB-T10

Baseboard for COM Express Type 10 Module COM.0 Rev. 2.1, suppport PICMG EAPI R1.0

End of Life

End of Life Notice

* Effective Date: 2021/11/30

» Intel® 22nm Atom™ on-board SoC supported
» Type 10 connector pinout according to COM.0 R2.1
» Supports 2 GB 1066/1333 MHz DDR3L memory
» Optional soldered down 4 GB SSD
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support wide range operating temperature: -40°C to +85°C

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 243.8 X 243.8
Net Weight 350g
Storage
Storage 2 x SATA
1 x SD/MicroSD card
I/O Interface
Display Output 1 x VGA
1 x Display Port
1 x eDP
Ethernet 1 x LAN
Audio Description: Realtek ALC662 HD Audio codec
1 x Line in
1 x Line out
1 x Mic
1 x Front Audio :2x5 pin
I/O Interface 6 x External USB 2.0
2 x External USB 3.2 Gen1x1
Expansion 4 x PCIe x1
Other Features
TPM 2x10 pin
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

ICE-DB-T10-R10 Base Board for COM Express Type 10 Module support PICMG COM.0 R2.1
