ICE-BT-T6

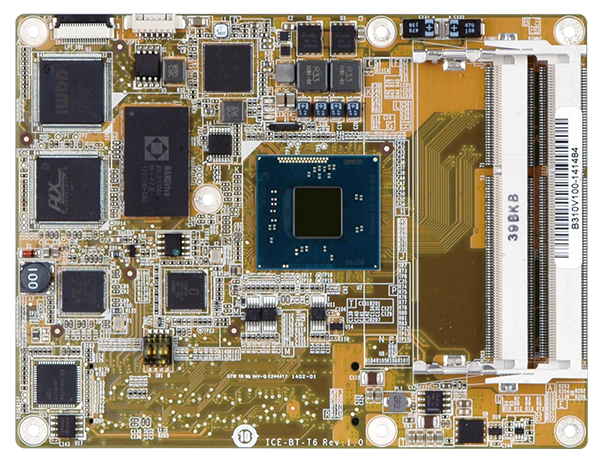

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor

  • Overview

    ● Intel® 22nm Atom™ or Celeron® on-board SoC supported
    ● Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
    ● Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8 GB
    ● Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
    ● Optional soldered down 4 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Features

    IEI COM Express Module

    Dimension

    ICE-BT-T6-dimenion-com-express

    IEI Innovative Gaming Solutions

    IEI provide a wide range of industrial computing products with high feasibility and reliability for gaming applications. Highly integrated CPU-on-module products, motherboards, systems and open frame monitors are suitable for wide applications in gaming market with high performance. We also offer various accessories for expansion.

    Download IEI Innovative Gaming Solutions Brochure

    Casino Machines single computer board

    Casino Machines

    The casino industry generates high revenues, and casinos are increasingly established worldwide. IEI offers products on Intel® and AMD® platforms. The KINO-DCM236 and the gKINO-DMF motherboards support high performance CPU and multiple display output. Their extra security features such as Intel® AMT support, reserved EEPROM, chassis intrusion detect pin and ECC support are adjustable for solutions in casino applications.

    Multiplayer Games

    The TANK-610-BW with multi-COM port and the IDS-300-BW with triple display are fulfilling the requirement for dart machines, multi-player game tables, and player machines. IEI ICE-ULT3 CPU on module with customized baseboard could even satisfy most of your security requests on gaming applications.

    Multiplayer Games single board computer
    Arcade Games single computer board

    Arcade Games

    Arcade games are always popular in young generation and evolving with new technology. IEI provides a wide range of products with multiple display output, graphics performance, and various OS support to meet the needs of speedy game developing. The KINO-DQM170 and tKINO-ULT3 motherboards with Core™ i CPU support are suitable for arcade games with their high performance CPU and rich display output ports.

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Display Output1 x VGA (2560x1600)
      1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
      1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      I/O Interface
      EthernetEthernet
      Intel® I210 GbE Ethernet
      Expansion5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)
      I/O Interface
      I/O Interface7 x USB 2.0
      4 x USB 3.0
      Power
      Power consumption+12V@0.54A, Vcore_12V@0.95A
      (Intel® Celeron® J1900 CPU with two 8GB 1333 MHz DDR3 memory)
      System
      CPUIntel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Memory Max.Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB
      Storage2 x SATA 3Gb/s signal to baseboard
      Optional soldered down SSD up to 64GB (SATA port 1)
    • Ordering Info.

      Item No. Description
      ICE-BT-T6-J19001-R10COM Express Basic Type 6 module supports Intel® Celeron® Quad-Core Processor J1900(10W), VGA, DDI, LVDS, GbE, SATA, USB 3.0 and HD Audio, RoHS
      ICE-BT-T6-N28071-R10COM Express Basic Type 6 module supports Intel® Celeron® Dual-Core Processor N2807(4.5W), VGA, DDI, LVDS, GbE, SATA, USB 3.0 and HD Audio, RoHS
      ICE-BT-T6-N29301-R10COM Express Basic Type 6 module supports Intel® Celeron® Quad-Core Processor N2930(7.5W), VGA, DDI, LVDS, GbE, SATA, USB 3.0 and HD Audio, RoHS
    • Package Contents

      • 1 x ICE-BT-T6 single board computer

      • 1 x Heatsink

      • 1 x QIG

Related Products
