gKINO-VR1000

Mini-ITX SBC supports AMD® Ryzen™ Embedded V1000/R1000 Series on board SoC, DDR4, quadruple independent displays, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS

IEI gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
  • IEI gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
  • gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
  • gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
  • gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
  • gKINO-VR1000 4K High Resolution AMD Industrial Motherboard
1. Mini ITX form factor with AMD® Ryzen™ Embedded processor supports dual-channel ECC DDR4 SO-DIMMs
2. Maximum up to quadruple DisplayPort output for multi-display support
3. M.2 slot support SATA or PCIe (2242/2280) & PCIe x16 slot support
4. Chassis intrusion detect pin and ECC support in gaming applications
5. COM RS-232 support Cctalk, TTL
6. TPM 2.0 hardware security function supported by TPM module

A New Class of Performance

The AMD Ryzen™ Embedded V1000 & R1000 processor family brings together the breakthrough performance of the pioneering AMD “Zen” CPU and “Vega” GPU architectures in a seamlessly-integrated SoC solution that sets a new standard in processing power for next-generation embedded designs.

    Better Performance

  • Up to 2X Increase in Performance v. Previous Generation
  • Up to 3X Better GPU Performance v. Competition
  • Up to 46% Better Multi-threaded Performance v.Competition

    Better Security Features

  • Bringing Video to Life H.265 enc/dec, VP9 decode
  • Leading Edge Interfaces HDMI™ 2.0b, Edp1.4, DP1.4
  • Up to 4 x 4K60 Native Display

    Better Security Features

  • AMD Secure Processor
  • Secure Memory Encryption
  • Secure Boot

    Better I/O

  • Optimized Design 26% Smaller Footprint
  • Market Leading Memory
  • Market Leading Memory Bandwidth

Up to Four DisplayPort Outputs

The 4K resolution is the technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. The most important point of view is gKINO-V1000 and gKINO-R1000 are adopted maximum have quadruple 4K DP display, the gKINO-R1000 with triple DP displays and gKINO-V1000 have quadraple DP displays, both of them are support 4K High resolution.

The Mini ITX form factor with AMD® Ryzen™ Embedded processor supports dual-channel ECC DDR4 SO-DIMMs. TPM 2.0 hardware security function supported by TPM module. Also the chassis intrusion detect pin and ccTalk support in gaming applications.

Dual-channel ECC DDR4 SO-DIMMs


TPM 2.0 hardware security function supported by TPM module

Chassis intrusion detect pin


PCIe x16 (with x8 Gen 3.0 signal) for expansion cards

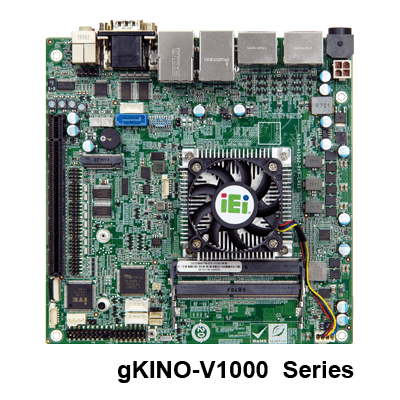

Mini ITX form factor with AMD® Ryzen™ Embedded V1000/R1000 Series Processor

Maximum up to 4 x 4K DisplayPort output for multi-display support

Powerful Security Function

TPM Expansion

The gKINO-V1000/gKINO-R1000 provides hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.

    TPM-IN02 TPM2.0 module for optional
  • File & Folder En/De-cryption
  • Personal secure drive
  • Secure email
  • Key transferring
  • Security policy configuration
  • LPC interface

Chassis intrusion detection

The internal chassis intrusion connector provides a chassis detection feature that detects if the chassis cover has been removed. An alarm will be triggered to notify users through the onboard speaker or the PC speaker once the cover is removed.

ccTalk Support

ccTalk is a serial protocol in widespread use throughout the money transaction and point-of-sale industry. ccTalk utilized to talk to the host controller can be applied in peripherals such as currency detectors for coins and banknotes found in a diverse range of automatic payment equipment in transportation, ticketing, payphones, amusement machines, and retail cash management.

Peripherals such as currency detectors for coins and banknotes.
Payment equipment such as: transportation, ticketing, payphones, amusement machines, and retail cash management.

Application Field

Gaming Machines
Digital Signage
Industrial Controls & Automation

Hardware Spec.

Form Factor
Form Factor Mini-ITX Motherboard
System
CPU AMD® Ryzen™ Embedded V1605B, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen™ Embedded V1202B, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12-25W
AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12-25W
Memory 2 x SO-DIMM DDR4 2400MHz up to 64GB (ECC support)
Memory Max. Up to 64GB
Cooling method / System Fan 1 x CPU fan
Physical Characteristics
Dimensions (LxWxH) (mm) 170mm x 170mm
Net Weight GW:900g / NW:400g
Storage
Storage 1 x M.2(NGFF)
1 x SATA
I/O Interface
Display Output 4 x Display Port
Ethernet 2 x LAN: GbE LAN (RTL 8119I)
Audio 1 x Front Audio(2x5-pin)
HD Audio: Realtek ALC662 HD audio codec
1 x Line out
1 x Mic
1 x S/PDIF
2 x Speaker: 2 x 6W audio amplifier L+R
I/O Interface 1 x DIO: 8-bit digital I/O (2x5 pin)
2 x External RS-232
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
1 x External USB 3.2 Gen1x2
6 x Internal RS-232- Detail:
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.00)
2 x Internal USB 2.0(2x4 pin, P=2.0)
Expansion 1 x M.2(NGFF): 1 x M.2 2242/2280 M key (PCIe x2/SATA)
1 x PCIe x16(with x8 Gen 3.0 signal)
Other Features
TPM 1 x TPM 2.0 connector (2x10 pin) (LPC interface)
Speaker 2 x 6W audio amplifier L+R
1 x onboard SPDIF output
Power
Input 12V DC input
1 x External DC jack (4-pin DIN)
1 x Internal power connector (2x2 pin)
Power Consumption 12V@5.144A (AMD Ryzen V1605B 2.0GHz CPU with 2666 MHz 32GB DDR4 memory)
12V@5.146A (AMD Ryzen R1606G 2.6GHz CPU with 2666 MHz 32GB DDR4 memory)
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

gKINO-V1605B-R10 Mini-ITX SBC supports AMD® Ryzen™ Embedded V1605B on board SoC (quad-core 2.0GHz, 15W) , DDR4, quadruple independent displays, quadruple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS
gKINO-V1202B-R10 Mini-ITX SBC supports AMD® Ryzen™ Embedded V1202B on board SoC (dual-core 2.3GHz, 15W) , DDR4, quadruple independent displays, quadruple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS
gKINO-R1606G-R10 Mini-ITX SBC supports AMD® Ryzen™ Embedded R1606G on board SoC (dual-core 2.6GHz, 15W) , DDR4, triple independent displays, triple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS
gKINO-R1505G-R10 Mini-ITX SBC supports AMD® Ryzen™ Embedded R1505G on board SoC (dual-core 2.4GHz, 15W) , DDR4, triple independent displays, triple DP, dual GbE, SATA 6Gb/s, USB 3.2, M.2, COM, TPM 2.0, HD audio and RoHS

Package Contents

Package Content
  • 1 x gKINO-V1000/R1000 series SBC with CPU cooler

  • 1 x SATA cable
