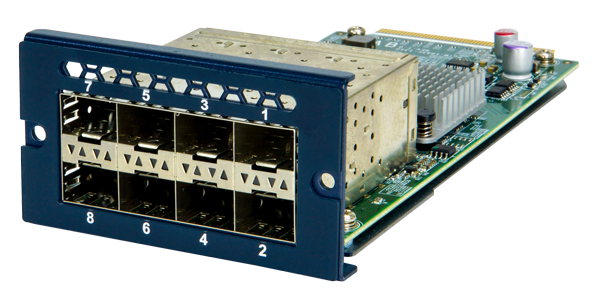

Overview
• 2 x Intel® Ethernet Controller I350-AM4• 8 x GbE SFP connectors• 2 PCIe2.0 x4• RoHS compliant -
Specifications
-
Hardware Spec.
Spec Item Description Physical Characteristics Dimensions (LxWxH) (mm) 165.50 x 77.8 x 44.2 I/O Interface Ethernet 8 x LAN Falt-tolerance LAN Bypass NO Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% RH, Non-condensing Certifications Safety & EMC CE/FCC/RoHS compliant Card Slot Interface PCIe 2 PCIe 2.0 x4 Card Features Speed GbE Controller Chip Intel® Ethernet Controller I350-AM4 -
Ordering Info.
Item No. Description PulM-1G8SF-I350-R10 Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x SFP by 2 PCIe 2.0 x4 interface. -
Package Contents
• 1 x PulM-1G8SF-I350 module
• 1 x L-shaped T10 Plum Wrench
• 2 x Torx Screws
• 1 x QIG
-
