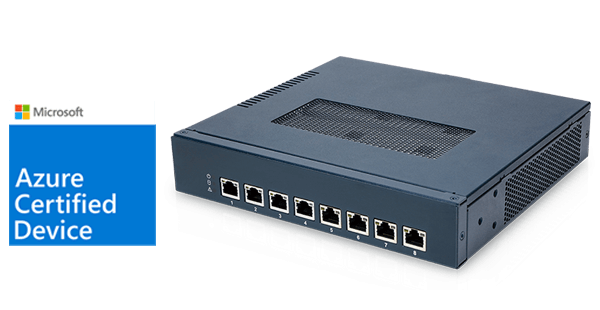

PUZZLE-IN003A

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, up to 8 x 1 GbE on Board with 2 (by sku) bypass segments, 1 x eMMC 32GB

  • Overview

    • Intel® Atom® Processor C3000 Processor
    • Support 4 x 1 GbE NIC via Intel® I211, 4 x 1 GbE PHY via Marvell 88E1543
    • Support bypass function (by sku)
    • DDR4 2133MHz ECC (by CPU) or non-ECC UDIMM/R-DIMM Up to 128GB
    • 1 x M.2 A key (USB 2.0, PCIe x1), 1 x miniPCIe (USB 2.0, PCIe x1) with SIM card slot, 1 x eMMC 32GB
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUPUZZLE-IN003A-C1 : Intel® Atom® processor C3558
      PUZZLE-IN003A-C3 : Intel® Atom® Processor C3336
      ChipsetIntegrated in CPU
      MemoryPUZZLE-IN003A-C1: 2 x 288-pin DIMM
      PUZZLE-IN003A-C3 : 1 x 288-pin DIMM
      Memory Max.DDR4 2133MHz ECC (By CPU) or non-ECC UDIMM up to 64 GB, Support RDIMM up to 128GB
      Cooling method / System FanFanless
      Physical Characteristics
      Dimensions (LxWxH) (mm)206 x 225 x 44.2
      Net Weight2 KG
      Storage
      Storage1 x eMMC(32 GB)
      1 x M.2(NGFF)(M.2 M key 2260/2280 Support PCIe 3.0 x4 nVME)
      1 x SATA: SATA 3.0 + 1 x 5V power connector (for SATA DOM)
      I/O Interface
      Ethernet8 x LAN:
      * PUZZLE-IN003A-C1 :
      8 x GbE LAN ports (4 x GbE NIC: Intel® i211-AT , 4 x GbE PHY: Marvell 88E1543)
      * PUZZLE-IN003A-C3 :
      6 x GbE LAN ports (4 x GbE NIC: Intel® i211-AT , 2 x GbE PHY: Marvell 88E1543)
      I/O Interface1 x External USB 2.0
      1 x External USB 3.2 Gen1x2
      Expansion1 x M.2(NGFF): A key (PCIe 3.0 & USB 2.0)
      1 x PCIe mini Card Slot(PCIe 3.0, USB 2.0) with SIM slot
      Falt-tolerance
      LAN BypassPUZZLE-IN003A-C1 : 2 bypass segments
      PUZZLE-IN003A-C3 : 1 bypass segments
      Wireless
      Others2 x Antenna hole
      Other Features
      TPM1 x TPM 2.0 pin header
      Power
      Input1 x DC jack
      Power Supply12 V DC-in, 60W
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5% ~ 90% non-condensing
      Certifications
      Safety & EMCCE / FCC / RoHS
      OS Support
      OS SupportLinux Ubuntu 18.04.04
      CentOS 7 / Red Hat / Fedora EPEL
      Microsoft Windows 10
    • Ordering Info.

      Item No. Description
      PUZZLE-IN003A-C1/8G-R10Desktop Network Appliance with Intel® ATOM® C3558 Processor , 8 x 1GbE on Board with up to 2 bypass segments, 8GB DDR4, eMMC 32GB & 2x M.2 slot
      PUZZLE-IN003A-C1-R10Desktop Network Appliance with Intel® ATOM® C3558 Processor , 8 x 1GbE on Board with up to 2 bypass segments, eMMC 32GB & 2x M.2 slot
      PUZZLE-IN003A-C3/8G-R10Desktop Network Appliance with Intel® ATOM®  C3336 Processor , 6 x 1GbE on Board with up to 1 bypass segments, 8GB DDR4, eMMC 32GB & 2x M.2 slot
      PUZZLE-IN003A-C3-R10Desktop Network Appliance with Intel® ATOM®  C3336 Processor , 6 x 1GbE on Board with up to 1 bypass segments, eMMC 32GB & 2x M.2 slot
    • Package Contents

      • • 1 x Power cord

      • • 1 x Power adapter

      • • 2 x Rack mounting ears (by sku)

      • • 6 x Screws for rack mounting ears (by sku)

      • • 1 x USB to console cable (by sku)

      • • 1 x RS-232 to console cable (bu sku)
