PCI Express Power over Ethernet card, 6-port 1000 Base(T), 802.3at / bt compliant, RoHS

  • Overview

    ● Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
    ● Total 180 Watts power budget with maximum 90 Watts per port
    ● PoE power sourced from 12~24VDC of ATX power
    ● Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
    ● Supports SW/RDK (IEI GPOE Management Software Tools)
    ● Compatible with x4, x8 and x16 PCIe slots
    ● IEEE 802.3at/bt PoE compliant
  • Features

    GPOE-6P Add-on Card for smart factory automation


    IEI releases the new product of GPOE series – GPOE-6P-R10. Compare with GPOE-2P and GPOE-4P, GPOE-6P-R10 has more ports to connect with more devices. By using GPOE-6P-R10, customers could use in different application such as PoE IP camera, VoIP phone, wireless AP, security gate, access control and PoE panel pc.

    GPOE-6P Power supply IoT appliaction

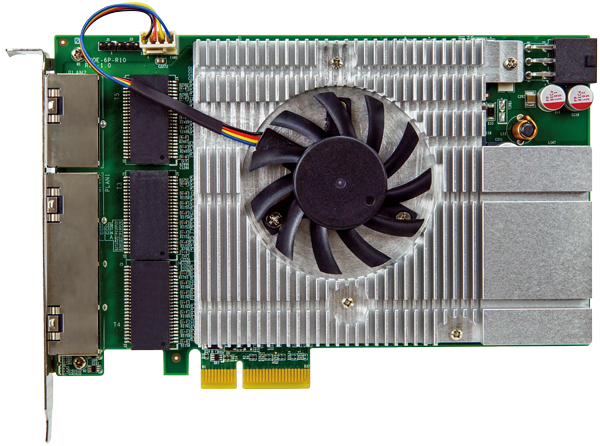

    Providing 6 PoE ports with one slot capacity and only 21.59mm wide, GPOE-6P-R10 support total 180 watts power budget and has its own individual cooler heatsink with fan. Moreover, IEI provide GPOE Management Software Tools to control each PoE ports.

    Providing 6 PoE ports with one slot capacity and only 21.59mm wide

    IEI GPOE-6P includes cooler heatsink with fan and only with one slot capacity. Mostly the embedded system will not only insert one GPOE card, IEI GPOE-6P provides two LED light and management software tools to clarify the function for each cards and ports. IEI GPOE management software tools could control the power and monitor the speed and process of data transfer through lan. Moreover, the software tools could also allocate the power of total 180 watts.


    IEI GPOE-6P PoE Expasion Card Dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Cooling method / System FanOne 1x4 pin fan
      Physical Characteristics
      Dimensions (LxWxH) (mm)169.44 mm x 106.65 mm
      Net Weight286g
      I/O Interface
      EthernetDescription: 6 x Intel® i211AT controller, 9kB jumbo frame
      - PoE Capability -
      IEEE 802.3at with 30W / 52V per port
      IEEE 802.3bt with 90W / 52V per port
      (Support for total 180 watts under full load)
      Input12~24V DC input
      1 x Internal DC input (2x3 pin)
      Operating Temperature0°C ~ 60°C
      Storage Temperature-10°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Safety & EMCCE/FCC compliant
      Card Slot Interface
      PCIePCI Express® x4
    • Ordering Info.

      Item No. Description
      GPOE-6P-R10 PCI Express Power over ethernet card, 6-port 1000 Base(T), 802.3at/bt compliant, RoHS
    • Package Contents

      • 1 x GPOE-6P card with cooler

      • 1 x QIG (Quick Installation Guide)
