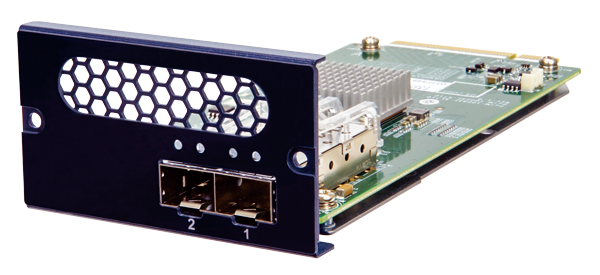

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface

  • Overview

    ‧1 x Intel® Ethernet Controller X710-BM2
    ‧2 x 10 GbE SFP+ connectors
    ‧PCIe 3.0 x8
    ‧RoHS compliant
  • Features

    Block Diagram

    Hardware Installation

    Install the PulM-10G2SF-X710 networking module into the slot of the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2).

    When the PulM-10G2SF-X710 is installed into the Slot B, the LAN ports function normally, but with half of the bandwidth

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)165.50 (L) x 77.8 (W) x 44.2 (H)
      I/O Interface
      Ethernet2 x SFP+
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5%~90% RH, Non-condensing
      Safety & EMCRoHS
      Card Slot Interface
      PCIePCIe 3.0 x8
      Card Features
      Controller ChipIntel® Ethernet Controller X710-BM2
    • Ordering Info.

      Item No. Description
      PulM-10G2SF-X710-R10Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2x SFP+ by 1 PCIe 3.0 x 8 interface.
    • Package Contents

      • 1 x PulM-10G2SF-X710 module

      • 1 x L-shaped T10 Plum Wrench

      • 2 x Torx Screws

      • 1 x QIG
