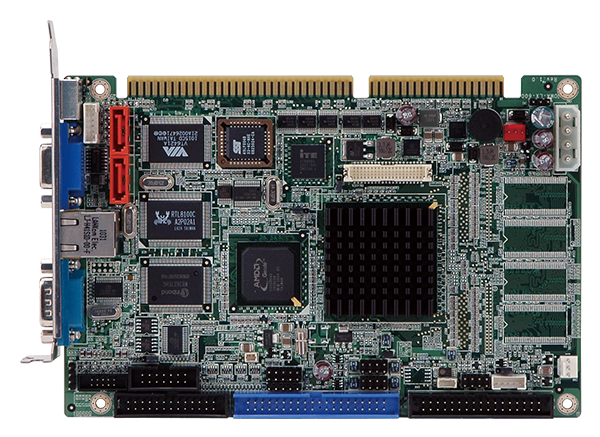

IOWA-LX

Half-size Pure ISA CPU Card with On-board AMD Geode™ LX600 Processor (366 MHz), 128KB L2 cache, On-board 128MB Memory

End of Life

End of Life Notice

* Effective Date: 2022/06/13

» ISA CPU card with on-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
» Flexible on-board DDR SDRAM and one SO-DIMM slot
» Enchanced TTL, RS-232, RS-422/485 and USB 2.0 interfaces for extened connectivities
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU On-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
Chipset AMD Geode™ CS5536
Memory One 200-pin 266/200 MHz DDR SDRAM SO-DIMMs On-board 128MB DDR 266/200 MHz memory
Memory Max. 512MB
Physical Characteristics
Net Weight 250g
Storage
Storage Description: 1 X FDD, 1 x IDE
2 x SATA :RAID 0/1 supported on IOWA-LX-600S-R10
1 x CF Type II Card
I/O Interface
Display Output 1 x VGA :up to 1920x1440
Ethernet Description: 10/100Mbps Realtek RTL8100C Ethernet controller
Audio Description: Realtek ALC203 with AC’97 codec
1 x Front Audio
I/O Interface 1 x External RS-232
2 x Internal RS-232/422/485 :2x7 pin, p=2.54
4 x Internal USB 2.0 :2x4 pin , p=2.54
1 x PS/2
1 x LPT :2x13 pin
Expansion 1 x ISA Slot :supported via golden finger
Power
Power Consumption 5V@1.51A, 5VSb@0.09A
(On-board AMD Geode™ LX 600 CPU 366 MHz with 128MB 200 MHz onboard DDR memory and 512MB 333 MHz DDR memory)
Power Supply 5V/12V, Support AT/ATX mode
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IOWA-LX-600S-R10 Half-size pure ISA CPU card with on-board AMD Geode™ LX 600 processor at FSB 366MHz, 128KB L2 cache, 128MB memory on board include VGA, LAN, USB2.0, SATA, CF, COM, LPT and Audio, RoHS
IOWA-LX-600-R10 Half-size pure ISA CPU card with on-board AMD Geode™ LX 600 processor at FSB 366MHz, 128KB L2 cache, 128MB memory on board include VGA, LAN, USB2.0, CF, COM, LPT and Audio, RoHS

Package Contents

Package Content
  • 1 x IOWA-LX-600 single board computer

  • 1 x Audio cable

  • 1 x IDE flat cable

  • 1 x KB/MS Y cable

  • 1 x USB cable

  • 1 x Mini jumper pack

  • 1 x QIG
