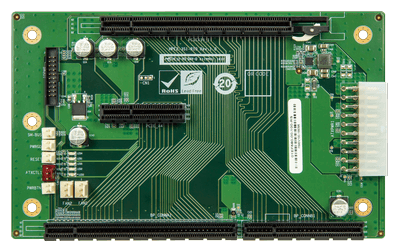

HPE2-3S1

5-slot PICMG 1.3 backplane for half-size SBC, with one PCIe x16 Slot and one PCIe x4 Slot

End of Life

End of Life Notice

* Effective Date: 2021/12/23

5-slot PICMG 1.3 backplane for half-size SBC, with one PCIe x16 Slot and one PCIe x4 Slot, RoHS

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 175.23 X 107.19 X 16.42
I/O Interface
Expansion 1 x PCIe x16
1 x PCIe x4
Power
Power Supply ATX power

Ordering Information

HPE2-3S1-R10 5-slot PICMG 1.3 backplane for half-size SBC, with one PCIe x16 Slot and one PCIe x4 Slot, RoHS
