  • Overview

    ● Support PCIe VGA/2D controller, 1920x1200@60Hz 32bpp
    ● DDR3 SDRAM supports up to 800 MHz speed
    ● Compliant with PCI Express Mini specification 1.2
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Compatible OS
      Compatible OSWin7/Win8/Server 2003/Server 2008/Server 2012
      Linux kernel version 2.6.32 above
      Dimensions
      Dimensions50mm x 30mm
      Display
      Display Controller ICAspeed AST1400
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Form factor
      Form factorPCI Express Mini card
      I/O Interface
      I/O Interface1 x 10-pin (2x5) box header by 2.0mm pitch
      Power
      Power SupplyOn-board 3.3V
      Weight
      Weight7g
    • Ordering Info.

      Item No. Description

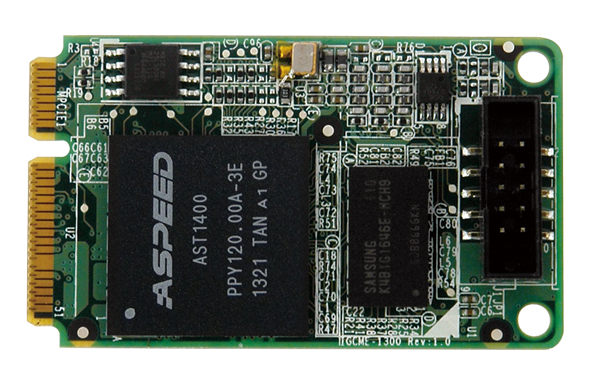

      IGCME-1300-R11PCIe Mini VGA adapter card with AST1400 ,RoHs
