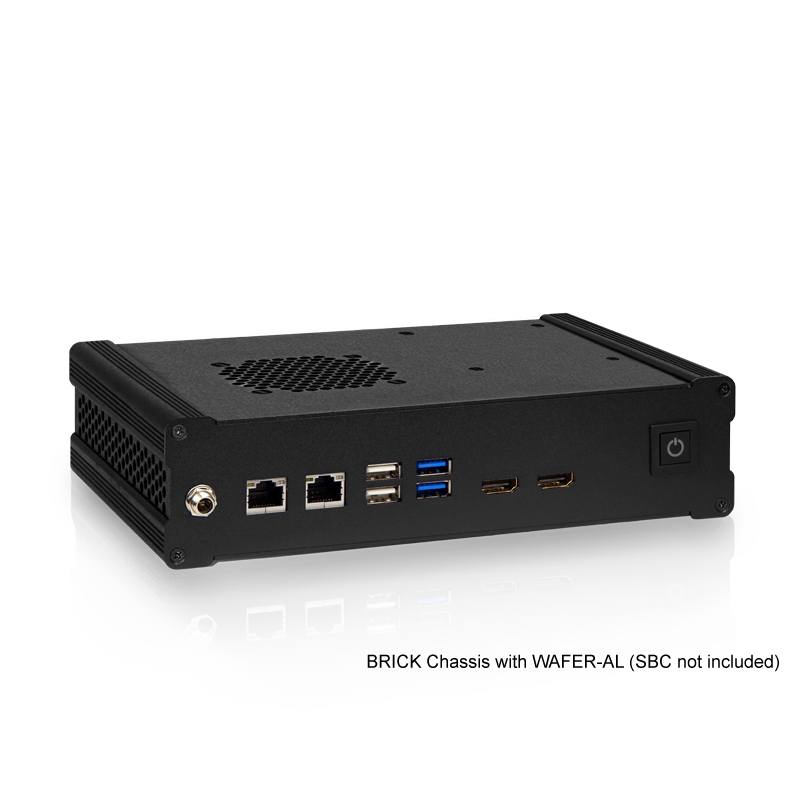

BRICK-NANO

Embedded Chassis for IEI DC input EPIC/3.5” SBC

End of Life

BRICK industrial chassis
  • BRICK industrial chassis

End of Life Notice

* Effective Date: 2021/06/15

» Designed for EPIC / 3.5” SBC with DC input
» Flexible SBC compatibility
» One 2.5” hard drive capacity
» Cost-effective, RoHS compliant design

Hardware Spec.

Form factor
SBC Form Factor Refer to NANO/WAFER Series
I/O Interface
I/O Openings Reserved IO window for COM port expansion
I/O Ports Refer to SBCs
Expansion Slots
Expansion Slots Refer to SBCs
System
Cooling method / System Fan Refer to SBCs
Drive Bays 1 x 2.5” HDD bay
Indicator&Buttons
Buttons Power switch with LED
Color
Color Black
Dimensions
Dimensions 220 x 143 x 55 mm
Weight
Weight 1.2kg/1.5kg
Environment
Operating Temperature 0°C ~ 40°C

Ordering Information

BRICK-WAFER-BT-R10 Embedded chassis for WAFER-BT SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS
BRICK-WAFER-AL-R10 Embedded chassis for WAFER-AL SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS
BRICK-NANO-BT-R10 Embedded chassis for NANO-BT SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS
BRICK-NANO-AL-R10 Embedded chassis for NANO-AL SBC, with SATA cable, IO bracket ,power switch, DC input cable, mat black and RoHS

Package Contents

Package Content
  • 1 x BRICK Chassis

  • 1 x Power switch cable

  • 1 x Screw set

  • 1 x QIG

  • 1 x SATA cable
