NANO-ULT5

EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI™, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C

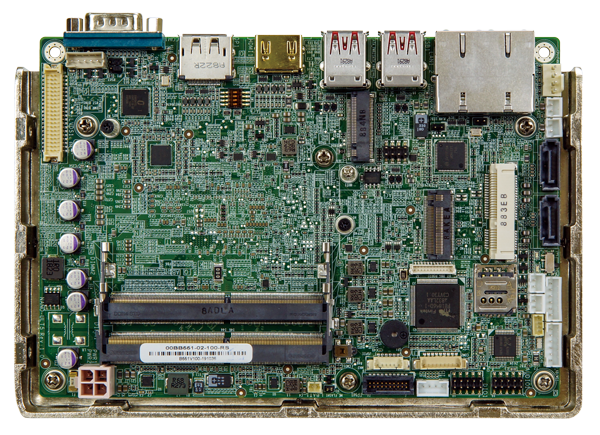

NANO-ULT5-embedded-board
NANO-ULT5-embedded-board
  • NANO-ULT5-embedded-board
  • NANO-ULT5-embedded-board
» EPIC SBC supports Intel® 8th Generation ULT processor or Celeron® on-board SoC supports dual-channelDDR4 SO-DIMMs
» Triple independent display support
» 12V DC input design
» M.2 slot with A key, M.2 M Key PCIe Mini slot with SIM holder
» COM, USB 3.1 Gen2, SATA 6Gb/s, eMMC 5.0 and audio support
» Support temperature operation: -20°C ~ 60°C

Intel's 8th Gen Core (Whiskey Lake-U) SoC

IEI’s 4” EPIC Board NANO-ULT5 based on Intel® Whiskey Lake-U 15W SoC, which is aimed at embedded applications. The NANO-ULT5 mainboard is designed for applications like Panel PC, small size embedded system, point-of-sales systems, kiosks, and digital signage, but can be used for regular low-power computers in a EPIC form-factor.

Multiple expansion slot for diverse solution

The design concept for NANO-ULT5 is to multiple expansion for diverse applications and make it an easy and better solution for users.

Product Overview

Triple Independent Display

The NANO-ULT5 is equipped with Intel® HD Graphics Gen9 which supports 16 execution units and 4K codec decode, and allows to display videos and images in stunning 4K resolution. With triple independent displays (eDP + HDMI™+DP),the HDMI™ and DisplayPort support up to 4K high resolution. The enhanced visual quality responses the demand of high precision displaying.

Application Field

For the application field, NANO-ULT series are suitable for various application. With LVDS as a panel PC or using triple independent display in the hospital as a monitoring system. In factory automation field, RS-232 could connect with processing machine. A real case for us is a self-service ordering machine, by using USB and HDMI™ to connector with partner’s touch panel and M.2 A key for transferring order to the kitchen. In makes customer easily make an order without waiting.

Panel PC

Hospital monitoring system

Factory monitor

Self-service ordering machine


Hardware Spec.

System
CPU Intel® Celeron® processor 4305UE (2.0 GHz Dual Core, 2MB cache, TDP=15W)
Intel® Core™ i3-8145UE (2.2 GHz Dual Core, 4MB cache, TDP=15W)
Intel® Core™ i5-8365UE (1.6 GHz, Quad Core, 6MB cache, TDP=15W)
Intel® Core™ i7-8665UE (1.7 GHz Quad Core, 8MB cache, TDP=15W)
Memory Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector
1 x eMMC :32GB(optional)
I/O Interface
Display Output 1 x HDMI™ :up to 38400x2160@60Hz
1 x Display Port :up to 38400x2160@60Hz
1 x LVDS :up to 1920x1200@60Hz
Ethernet Description: 1 x PCIe GbE LAN Intel® i211 controller
1 x PCIe GbE LAN Intel® i219 controller
Audio Description: 1 X Analog audio (2x5 pin)
I/O Interface 1 x External RS-232
1 x Internal RS-232 :1x9 pin, p=1.25
1 x Internal RS-422/485 :1x4 pin, P=2.0
4 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 :2x4 pin, P=2.0
Expansion Description: 1 X SIM card
1 x PCIe mini Card Slot
2 x M.2(NGFF) :1 X 2230 A Key, 1 X 2280 M Key
Other Features
TPM 2x10 pin
Power
Power Supply 12V DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing

Ordering Information

NANO-ULT5-i7-R10 EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i7-8665UE (15W) on-board Processor (ULT) with HDMI™/LVDS/DP, Dual PCIe GbE, USB 3.1 Gen 2, PCIe Mini, M.2 A & M Key, SATA 6Gb/s , COM, SPI TPM , Audio and RoHS
NANO-ULT5-i5-R10 EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i5-8365UE (15W) on-board Processor (ULT) with HDMI™/LVDS/DP, Dual PCIe GbE, USB 3.1 Gen 2, PCIe Mini, M.2 A & M Key, SATA 6Gb/s , COM,SPI TPM ,Audio and RoHS
NANO-ULT5-i3-R10 EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3-8145UE (15W) on-board Processor (ULT) with HDMI™/LVDS/DP, Dual PCIe GbE, USB 3.1 Gen 2, PCIe Mini, M.2 A & M Key, SATA 6Gb/s , SPI TPM ,COM, Audio and RoHS
NANO-ULT5-C-R10 EPIC SBC supports Intel® 14nm 8th Generation Mobile Celeron™4305UE (15W) on-board Processor (ULT) with HDMI™/LVDS/DP, Dual PCIe GbE, USB 3.1 Gen 2, PCIe Mini, M.2 A & M Key , SATA 6Gb/s ,SPI TPM ,COM, Audio and RoHS

Package Contents

Package Content
  • 1 x NANO-ULT5 single board computer with Heatsink

  • 1 x Power Cable

  • 1 x SATA with power cable kit

  • 2 x RS-232 cable

  • 1 x Audoi Cable

  • 1 x QIG (Quick Installation Guide)
