End of Life Notice
* Effective Date: 2022/06/09

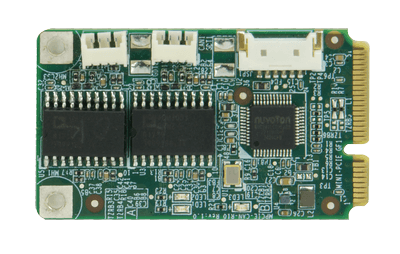

» PCI Express Mini Card full-size
» Minipcie interface (USB interface)
» Supports 2 x CANBus 2.0B port module with isolating
» Communication Baud Rate: 50/125/250/500/1000K @ 40meter
» OS support: Windows /Linux
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | PCI Express Mini Card |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 30 X 50.9 X 6 |
| Net Weight | 50g |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
| Safety & EMC |
Complies with EN61000-4-5 2.5kV Surge protection Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV |
| Card Slot Interface | |
| PCIe | miniPCIe full-size |
Ordering Information
| MPCIE-CAN-R10 | PCI Express Mini Dual CAN Bus module, Full size, RoHs, R10 |
|---|
Package Contents
| Package Content |
|
|---|
