PEMUX-XEW1

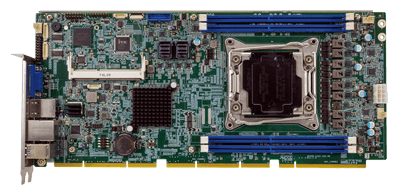

Full-size PEMUX CPU Card supports LGA2066 Intel® Xeon® W CPU per, Intel® C422, DDR4 ECC RDIMM, IPMI VGA output, Aquantia 10GbE, USB 3.0, SATA 6Gb/s, M.2 and RoHS

  • Overview

    ● PEMUX full-size server / graphic grade solution
    ● LGA2066 Intel® Haswell processor supported
    ● Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM supports up to 256GB
    ● Supports IPMI VGA display.
    ● Supports M.2 2280 SSD
    ● Intel® PCIe GbE Intel® i210-AT with NCSI support
    ● Aquantia AQC107 10 GbE NIC
    ● Supports RAID function via SATA 6Gb/s
    ● TPM V2.0 hardware security function supported by TPM module
  • Features

    Full-size CPU Card


    Features

    PEMUX CPU card IO
    PEMUX CPU Card Support

    PEMUX-DB-8S1-R10

    PEMUX-DB-8S1-R10

    PEMUX-DB-10S1-R10

    PEMUX-DB-10S1-R10
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA2066 socket supports Intel® Xeon W processor
      ChipsetIntel® C422
      MemoryFour 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM
      Memory Max.256GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)338.58 X 150.5
      Net Weight700g
      Storage
      Storage8 x SATA :2 x SAS 8643
      1 x M.2(NGFF) :2280
      I/O Interface
      Display Output1 x VGA
      Ethernet2 x LAN :LAN1: 1 GbE NIC: Intel® i210-AT with NCSI support
      LAN2: 10 GbE NIC: Aquantia AQC107
      AudioDescription: 2 X 5 pin
      I/O Interface2 x Internal RS-232 :2x9 pin, p=2.0
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      1 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
      ExpansionDescription: 56-Lane PCIe signal via golden finger
      Other Features
      TPM2x10 pin
      Power
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 40°C
      Humidity5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      PEMUX-XEW1-R10Full-size PEMUX CPU Card supports LGA-2066 Intel® Xeon® W processor, Intel® C422 chipset, DDR4 R-DIMM and LR-DIMM supported, IPMI VGA output, Intel® PCIe GbE, Aquantia 10GbE, USB3.0, USB2.0, SATA 6Gb/s(with mini SAS connector), and RoHS
    • Package Contents

      • 1 x PEMUX-XEW1 single board computer

      • 1 x mini SAS to 4 SATA cable

      • 1 x QIG (Quick Installation Guide)
