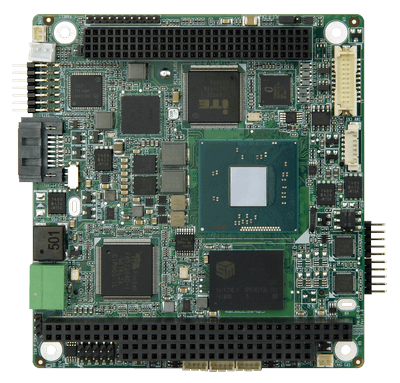

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS

  • Overview

    ● PC/104 form factor SBC supports 22nm Intel® Atom™ on-board SoC
    ● PC/104-Plus (ISA and PCI signal) function support
    ● 5V DC input solution
    ● Support 2 COM, PCIe Mini, USB and optional on-board SSD
    ● Dual display from VGA and LVDS
    ● Wide range temperature support from -40°C ~ 85°C (for E38xx series CPU)
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Features

    PM-BT single board computer banner
    PM-BT_single-board-computer-features
    PM-BT single board computer applications

    Dimension

    PM-BT single board computer dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      BIOS
      BIOSAMI UEFI BIOS
      Dimensions
      Dimensions96 mm x 90 mm
      Display
      Display OutputDual independent display
      1 x VGA (up to 2560x1600@60 Hz)
      1 x 18/24-bit single-channel LVDS (2x10 pin)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C (for J1900/N2930/N2807)
      -40°C ~ 85°C (for E38xx)
      Storage Temperature-40°C ~ 85°C
      Expansion Slots
      Expansion Slots1 x PC/104-Plus (ISA+PCI)
      I/O Interface
      Ethernet1 x Intel® I210
      I/O Interface
      I/O Interface1 x Digital I/O(1 x 8-bit digital I/O, 2x5 pin, P=2.0)
      1 x Expansion / Front panel(1 x 10-pin header, P=2.0, power LED, HDD LED, power button and reset button)
      2 x Internal RS-232/422/485(2x5, P=2.0)
      3 x Internal USB 2.0(1x4 pin, P=1.25)
      PCIe Mini
      PCIe Mini1 x Full-size PCIe Mini slot (supports mSATA)
      Power
      Input5V DC input
      Storage
      Storage1 x SATA 3Gb/s with 5V SATA power connector
      Super IO
      Super IOFintek F81866
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      Memory Max.One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
      (J1900, E3845,E3825) or 4 GB (N2807)
      Watchdog Timer
      Watchdog TimerSoftware programmable, supports 1~255 sec. system reset
      Weight
      WeightNW 120g
    • Ordering Info.

      Item No. Description
      PM-BT-J19001-R10PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
      PM-BT-N28071-R10PC/104-Plus Single Board Computer with Intel® Atom™ N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
    • Package Contents

      • 1 x PM-BT single board computer

      • 1 x SATA cable kit

      • 1 x COM port cable

      • 1 x Single-port USB cable

      • 1 x LAN cable

      • 1 x VGA cable
